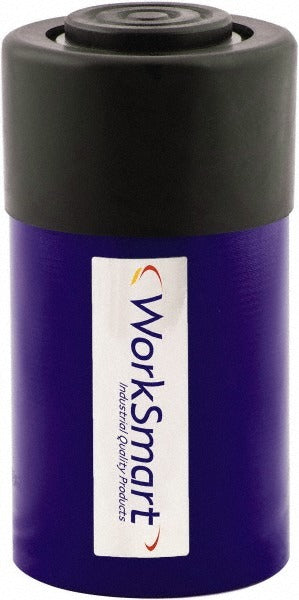

Value Collection PS-MH-HPC1-119 Hydraulic Cylinder

Product Description

The VALUE COLLECTION PS-MH-HPC1-119 is a single-acting portable hydraulic cylinder designed for controlled linear force applications in maintenance, fabrication, and field service work. It operates with a 5.25 cubic inch oil capacity and features a 2.24-inch rod diameter, delivering substantial push force in a compact footprint. The lowered height of 5.63 inches and maximum extended height of 6.65 inches make it well-suited for jobs where vertical clearance is limited. A 1-1/2-16 plunger internal thread and 3-5/16-12 collar thread allow secure attachment of hydraulic tooling accessories. Weighing 13.86 pounds, the unit is portable enough for mobile service use.

This cylinder fits single-acting hydraulic circuit applications where the load or an external spring returns the plunger. Typical uses include pressing, lifting, pushing, and straightening operations in industrial maintenance, structural work, and heavy equipment service. It is commonly deployed in shops or field environments where a compact hydraulic cylinder with threaded plunger and collar connections is required. Licensed mechanics, maintenance technicians, and industrial service pros are the primary installers and operators.

Key Features

• Single-acting operation — load or external spring returns the plunger
• 5.25 cubic inch oil capacity supports consistent stroke performance
• 2.24-inch rod diameter for high push-force output
• Lowered height of 5.63 inches for use in tight vertical clearances
• 1-1/2-16 plunger internal thread with 1.19-inch thread length for tooling attachment
• 3-5/16-12 collar thread for secure base or fixture connection

Compatibility

Designed as an OEM-style portable single-acting hydraulic cylinder for use with compatible single-acting hydraulic hand pumps and circuits requiring threaded plunger and collar connections.

Installation Notes

Installation and operation should be performed by a qualified hydraulic technician or maintenance professional. Depressurize the hydraulic system fully before connecting or disconnecting the cylinder. Ensure all threaded connections are fully engaged and that hose fittings are rated for the system operating pressure before applying load. Do not exceed the cylinder rated capacity or stroke limits during operation.
