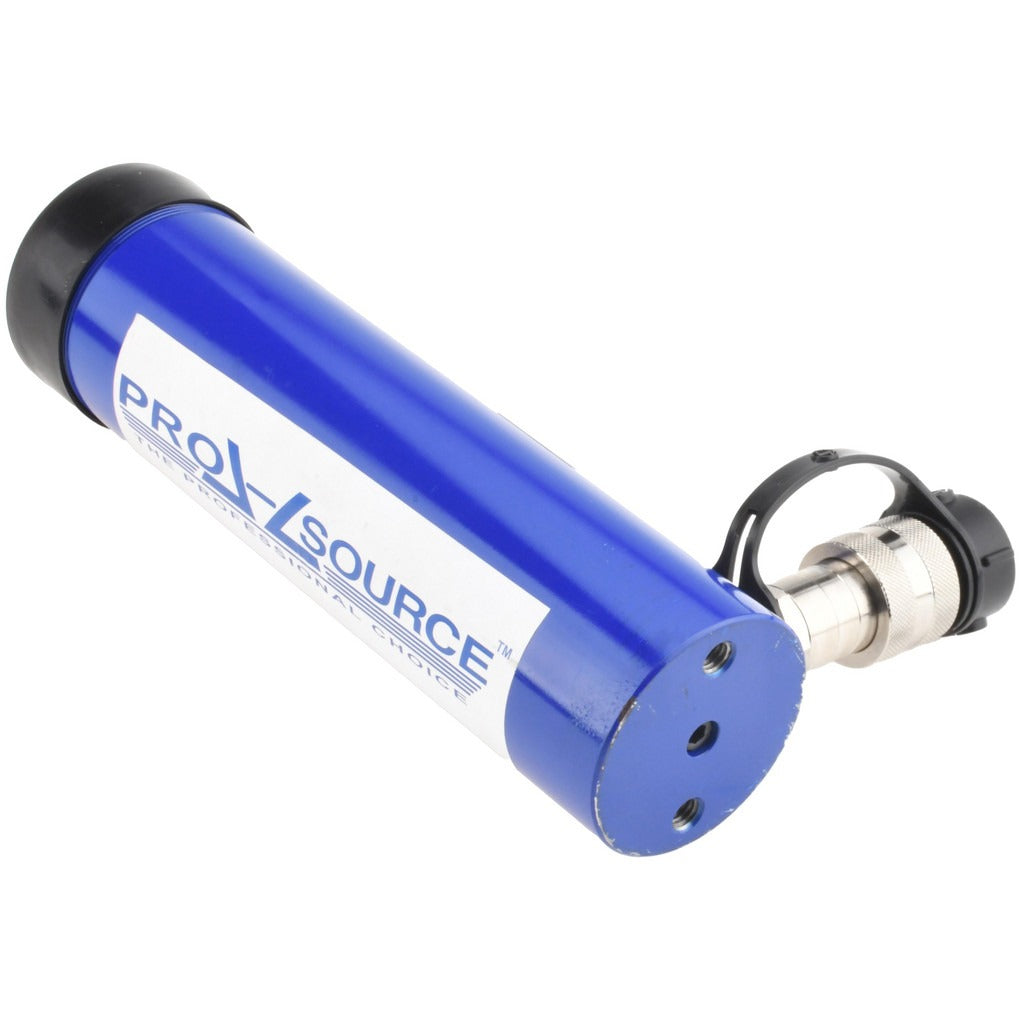

Value Collection PS-MH-HPC1-115 Hydraulic Cylinder

Product Description

The VALUE COLLECTION PS-MH-HPC1-115 is a single-acting portable hydraulic cylinder designed for heavy-duty lifting, pressing, and pushing applications in industrial and field service environments. It carries an oil capacity of 18.77 cubic inches and features a 1.63-inch rod diameter, giving it a solid bore size suited for high-force tasks. With a lowered height of 10.63 inches and a maximum extended height of 16.61 inches, this cylinder delivers a working stroke appropriate for a wide range of positioning jobs. At 16.44 pounds, it is portable enough for mobile use while still handling substantial loads. Maintenance technicians, millwrights, and hydraulic service professionals are the typical installers.

This cylinder is used in portable hydraulic setups where a self-contained or hand-pump-driven single-acting system is required. Typical applications include machinery maintenance, structural alignment, bridge and bearing work, and general fabrication shop use. The single-acting design relies on an external load or spring return to retract the plunger, which suits vertical lifting scenarios where gravity provides the return force. The plunger internal thread size of 1-8 and collar thread of 2-3/4-16 allow for threaded attachment of extensions or saddles as needed for the specific job.

Key Features

• Single-acting operation for straightforward pump-and-hold lifting tasks
• 18.77 cubic inch oil capacity supports full stroke without frequent re-pumping
• 1.63-inch rod diameter provides a robust plunger cross-section for high-force output
• Plunger internal thread size of 1-8 with 1.00-inch thread length for saddle or extension attachment
• Collar thread of 2-3/4-16 for secure mounting or nose extension fitment
• Compact lowered height of 10.63 inches suits tight-clearance lift points

Compatibility

Designed as an OEM-style portable hydraulic cylinder compatible with standard single-acting hydraulic hand pump systems that operate on conventional hydraulic fluid; verify pump coupler thread and pressure rating before installation.

Installation Notes

Installation and operation should be performed by qualified hydraulic service technicians or millwrights familiar with portable hydraulic equipment. Before connecting or disconnecting hydraulic lines, relieve all system pressure and ensure the load is fully supported by mechanical means independent of the cylinder. Inspect all threaded connections and couplers for damage before pressurizing the system. Follow applicable ASME and OSHA guidelines for hydraulic lifting equipment setup and load control.
