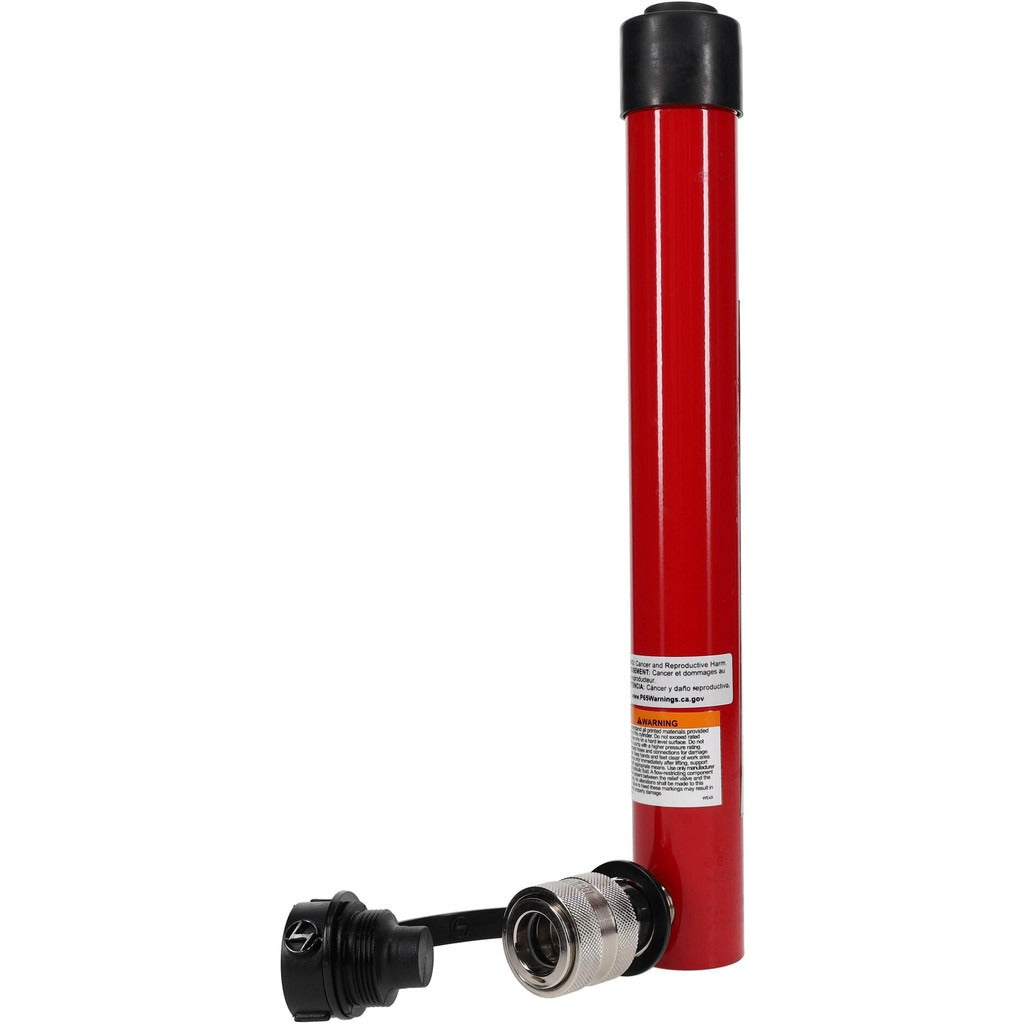

Value Collection PS-MH-HPC1-107 Hydraulic Cylinder

Product Description

The VALUE COLLECTION PS-MH-HPC1-107 is a single-acting portable hydraulic cylinder designed for lifting, pressing, and force-application tasks in industrial and field service environments. With a 9.03 cubic inch oil capacity and a 1-inch rod diameter, this cylinder delivers controlled, consistent hydraulic force in a compact form. At 6.38 pounds, it is portable enough for mobile service work while remaining robust enough for demanding shop applications. A single-acting design means hydraulic pressure extends the plunger and mechanical load or spring return retracts it. Maintenance technicians, hydraulic technicians, and industrial service professionals are the primary installers and operators of this unit.

This cylinder is suited for use in maintenance, repair, and overhaul applications where portable hydraulic force is needed. Typical scenarios include equipment alignment, component pressing, structural lifting, and field rigging tasks. The lowered height of 12.75 inches and maximum extended height of 21.75 inches give the cylinder a 9-inch stroke range, making it practical for a wide variety of lift and press clearances. Its threaded collar and plunger internal thread allow for secure coupling to compatible tooling and fixtures.

Key Features

• Single-acting hydraulic actuation — extends under pressure, retracts by load or external return
• 9.03 cubic inch oil capacity for consistent stroke volume
• 1-inch rod diameter with a 3/4-16 internal thread and 0.63-inch thread length for tooling attachment
• 1-1/2 - 16 collar thread for secure mounting or fixture coupling
• Lowered height of 12.75 inches and maximum height of 21.75 inches
• Lightweight at 6.38 pounds — suitable for portable and field service use

Compatibility

Designed as an OEM-style portable hydraulic cylinder for use with compatible single-acting hydraulic hand pumps and power units that match the threaded collar and plunger specifications of this cylinder.

Installation Notes

Installation and operation should be performed by qualified hydraulic technicians familiar with hydraulic system safety practices. Always relieve all hydraulic pressure from the system before connecting or disconnecting the cylinder. Ensure threaded connections at the collar and plunger are fully engaged and free of damage before applying pressure. Do not exceed the rated capacity of the cylinder, and inspect seals and fittings for leaks after initial pressurization.
