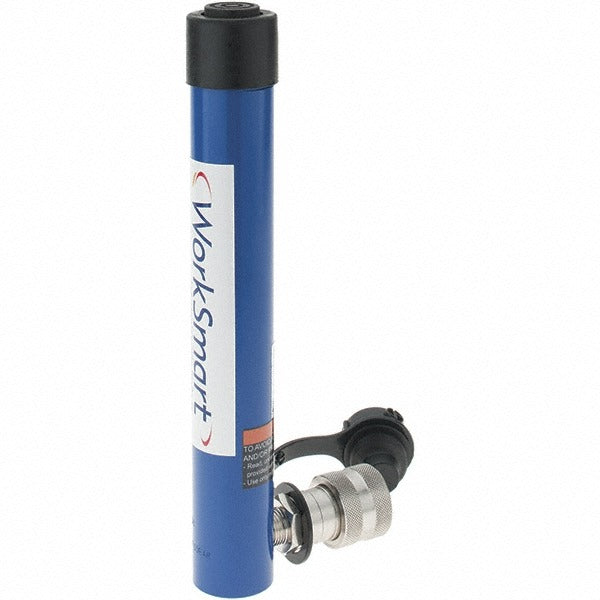

Value Collection PS-MH-HPC1-106 Hydraulic Cylinder

Product Description

The VALUE COLLECTION PS-MH-HPC1-106 is a single-acting portable hydraulic cylinder designed for controlled linear force applications in maintenance, fabrication, and field service environments. With a 7.09 cubic inch oil capacity and a 1-inch rod diameter, this cylinder delivers reliable plunger extension for pressing, lifting, and positioning tasks. The single-acting design means hydraulic pressure extends the plunger, with spring or gravity return on release. A plunger internal thread size of 3/4-16 and a collar thread of 1-1/2-16 allow for tooling attachments and secure mounting setups. Licensed hydraulic technicians and millwrights are the typical installers.

This cylinder is suited for portable hydraulic setups in light industrial, mechanical maintenance, and equipment repair applications. It fits horizontal or vertical orientations where a compact, low-profile cylinder is needed. The lowered height of 10.71 inches and maximum extended height of 17.80 inches make it practical in confined workspaces. It is commonly used with a separate hand pump or air-driven hydraulic pump. No permanent hydraulic circuit connection is required, supporting job-site portability.

Key Features

• Single-acting actuation with hydraulic extension and gravity or spring return
• 7.09 cubic inch oil capacity supports sustained plunger travel
• 1-inch rod diameter for firm, stable force transfer
• 3/4-16 plunger internal thread for compatible tooling attachment
• 1-1/2-16 collar thread for secure mounting or saddle fitment
• Compact lowered height of 10.71 inches suits restricted-clearance jobs

Compatibility

Designed as an OEM-style portable hydraulic cylinder for use with compatible single-acting hand pumps and hydraulic power units requiring a cylinder with 3/4-16 plunger thread and 1-1/2-16 collar thread interface.

Installation Notes

Installation and operation should be performed by qualified hydraulic technicians or millwrights familiar with hydraulic safety practices. Always depressurize the hydraulic system fully before connecting or disconnecting the cylinder. Verify that the pump output pressure rating is within the cylinder operating range before use. Inspect all hydraulic fittings and thread connections for proper engagement before applying load.
