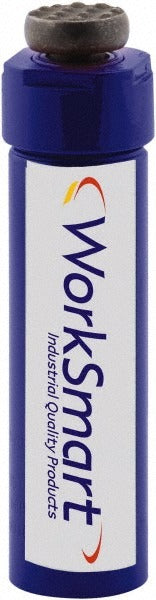

Value Collection PS-MH-HPC1-105 Hydraulic Cylinder

Product Description

The VALUE COLLECTION PS-MH-HPC1-105 is a single-acting portable hydraulic cylinder designed for controlled linear force in maintenance, fabrication, and field service applications. With an oil capacity of 2.28 cubic inches and a rod diameter of 0.87 inches, this cylinder delivers precise, repeatable ram stroke in a compact form factor. At 2.31 pounds, it is light enough for one-person positioning. The lowered height of 5.39 inches and maximum extended height of 8.46 inches make it suited for confined-space lifting and pressing tasks where a larger cylinder would not fit. Collar thread is 1-1/4 - 16 for standard hydraulic fitting compatibility. Licensed tradespeople and industrial maintenance technicians are the primary installers.

This cylinder fits portable hydraulic hand-pump and air-pump setups commonly used in mechanical shops, field maintenance, and assembly operations. Typical applications include bearing pressing, flange spreading, load holding, and light structural alignment work. The single-acting design means hydraulic pressure drives the ram out, and a spring or gravity returns it when pressure is released. It is sized for benchtop or handheld use and travels easily to job sites.

Key Features

• Single-acting operation with spring or gravity return on retract stroke
• 0.87-inch rod diameter provides solid ram strength in a compact envelope
• 2.28 cubic inch oil capacity for controlled, consistent stroke volume
• Lowered height of 5.39 inches enables use in tight clearance situations
• 1-1/4 - 16 collar thread fits standard hydraulic pump couplers
• 2.31-pound total weight supports one-person portable use

Compatibility

Designed as an OEM-style replacement or add-on cylinder for portable single-acting hydraulic hand-pump systems using standard 1-1/4 - 16 collar thread connections.

Installation Notes

Installation and operation should be performed by a qualified mechanic or hydraulic systems technician familiar with hydraulic circuit safety. Always relieve all system pressure before connecting or disconnecting the cylinder. Inspect all fittings and hoses for damage prior to pressurizing. Do not exceed the rated operating pressure for this cylinder as specified by the pump system manufacturer.
