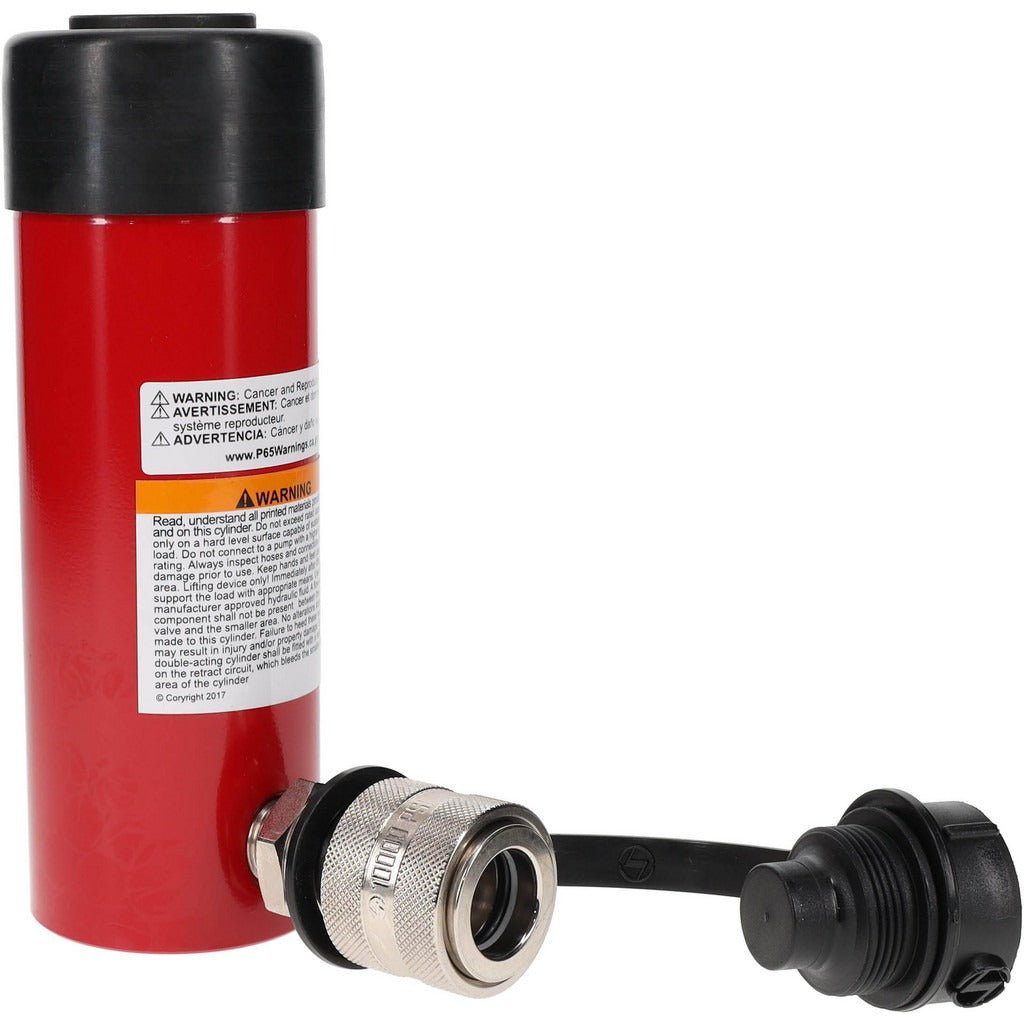

Value Collection PS-MH-HPC1-072 Hydraulic Cylinder

Product Description

The VALUE COLLECTION PS-MH-HPC1-072 is a single acting portable hydraulic cylinder designed for controlled linear force applications in industrial and field service environments. With a 9 cubic inch oil capacity and a 1.49 inch rod diameter, this cylinder delivers reliable pushing force where a fixed hydraulic press is not practical. The lowered height of 6.85 inches and maximum extended height of 10.87 inches make it suited for jobs with limited clearance. Hydraulic technicians, millwrights, and maintenance mechanics are the typical installers of this class of equipment.

This cylinder is used in portable hydraulic setups for lifting, pressing, pushing, and alignment work on machinery, structural components, and mechanical assemblies. The single acting design means hydraulic pressure extends the plunger and gravity or an external load retracts it. The plunger features a 1-8 internal thread and a 2-1/4 - 14 collar thread, allowing attachment of standard hydraulic accessories and saddles. It is appropriate for both shop use and field service jobs where a self-contained or hand-pump hydraulic system is deployed.

Key Features

• Single acting operation: hydraulic pressure extends plunger, load or gravity retracts
• 9 cubic inch oil capacity for consistent stroke delivery
• 1.49 inch rod diameter for substantial load-bearing surface area
• Plunger internal thread size 1-8 with 0.75 inch thread engagement length
• Collar thread 2-1/4 - 14 for accessory compatibility
• Compact lowered height of 6.85 inches for tight-clearance applications

Compatibility

Designed as a portable single acting hydraulic cylinder compatible with standard hand-pump and air-over-hydraulic systems that accept a threaded plunger nose and collar-mount configuration.

Installation Notes

Installation and operation of hydraulic cylinders should be performed by qualified technicians familiar with hydraulic system safety. Always depressurize the hydraulic system fully before connecting or disconnecting the cylinder. Position the cylinder on a stable, level surface and confirm the load path is aligned with the plunger axis to prevent side-loading. Do not exceed the rated capacity of the cylinder or the connected hydraulic pump system.
