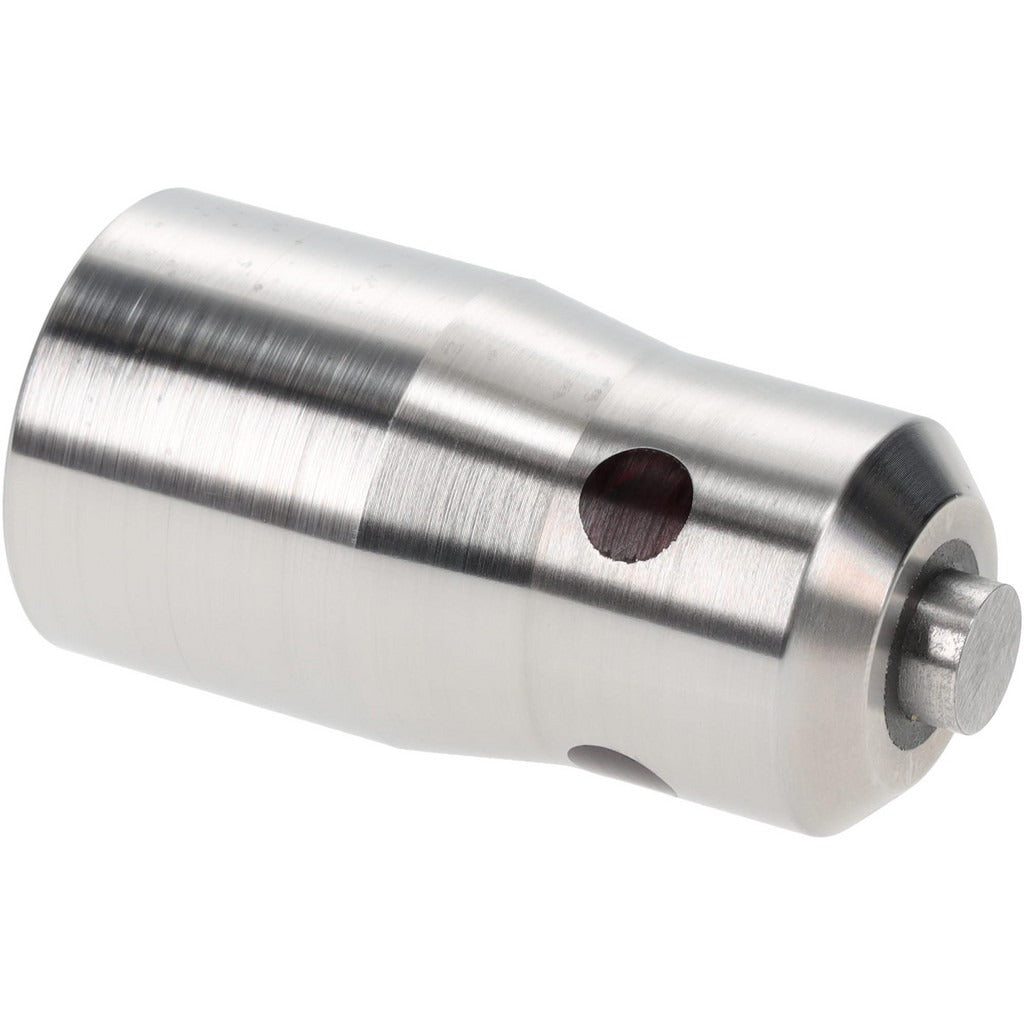

Value Collection Pre-set Gage Height Offset Gage

Product Description

The VALUE COLLECTION PRE-SET GAGE is a height offset gage designed for precision measurement tasks in machining, metrology, and tool-and-die applications. It delivers accuracy to 0.0002 inches with matching repeatability of 0.0002 inches, making it a reliable instrument for close-tolerance inspection work. The unit measures 1 inch overall width and 2 inches overall length, features a cylindrical contact point, and runs on battery power for portable use on the shop floor or at the bench. Machinists, quality technicians, and tool makers are the primary users of this instrument.

This height offset gage is suited for use in precision manufacturing and inspection environments where consistent, repeatable measurements are required. It is appropriate for both setup verification and in-process checks on milled, turned, or ground workpieces. The compact 2-inch overall length makes it practical in tight fixturing setups. Its battery-powered design eliminates the need for a hardwired power source, supporting flexible deployment across multiple workstations or inspection stations.

Key Features

• Accuracy to 0.0002 inches for close-tolerance measurement work
• Repeatability of 0.0002 inches ensures consistent readings across multiple measurements
• Cylindrical contact point provides stable, repeatable contact on workpiece surfaces
• Battery-powered operation supports portable and bench-top use
• Compact footprint at 1 inch wide and 2 inches in overall length
• Non-magnetic construction suits use near sensitive components or instruments

Compatibility

Designed as a general-purpose height offset gage for precision measurement and inspection applications in machine shop and metrology environments.

Installation Notes

This instrument is handled and operated by machinists and quality technicians and does not require installation in the traditional sense. Before use, ensure the contact point and reference surface are clean and free of chips, coolant, or debris that could affect measurement accuracy. Handle with care to avoid dropping or impacting the cylindrical contact, as this can affect calibration. Follow the manufacturer guidelines for battery replacement and periodic calibration verification to maintain measurement integrity.
