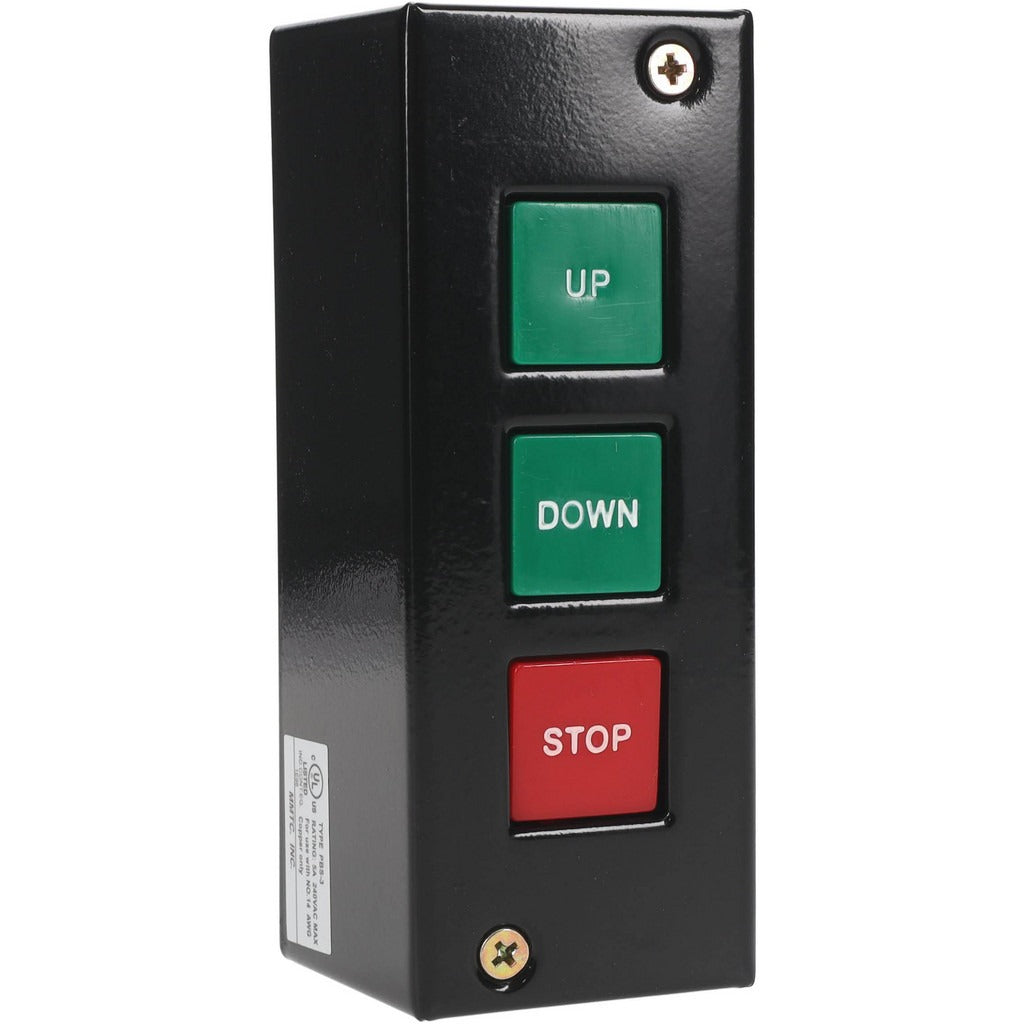

Value Collection PBS-602 Push-button Control Station

Product Description

The VALUE COLLECTION PBS-602 is a momentary push-button control station designed for industrial and commercial motor control applications. It features three flush-mounted push button operators labeled Up, Down, and Stop, with NO/NC contact configuration for flexible wiring in both normally open and normally closed circuits. Rated at 7 amps and 24 volts AC, this control station is suited for low-voltage control circuits driving hoists, conveyors, lifts, and similar motorized equipment. The enclosure carries a NEMA 1 rating, making it appropriate for general-purpose indoor use in clean, dry environments. Electricians and industrial maintenance technicians are the primary installers.

This control station is used in residential and light commercial settings where a compact, wall-mounted or panel-mounted control point is needed for up, down, and stop motor functions. Typical applications include overhead door operators, small hoists, lift tables, and conveyor control panels. The three-operator layout covers the essential directional and stop commands in a single compact housing measuring 5-5/16 inches tall, 2-3/8 inches wide, and 1-13/16 inches deep. The black and gray color scheme is standard for industrial control equipment.

Key Features

• Three flush push button operators with Up, Down, and Stop legend markings
• Momentary switch action for safe, operator-controlled motor direction
• NO/NC contact configuration supports a wide range of control circuit wiring schemes
• Rated 7 amps at 24 volts AC for low-voltage control circuit use
• NEMA 1 enclosure rating for general-purpose indoor dry locations
• Compact housing at 5-5/16 inches tall and 2-3/8 inches wide

Compatibility

Designed as a general-purpose momentary push-button control station for low-voltage motor control circuits in NEMA 1 indoor environments.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power to the control circuit before wiring or servicing this station. Verify that the supply voltage and amperage of the control circuit match the station ratings of 24 volts AC and 7 amps before energizing. Mount the enclosure to a secure surface using appropriate hardware to prevent movement during operator use.
