Value Collection P20277 Clevis Pin 0.5 in Steel

Product Description

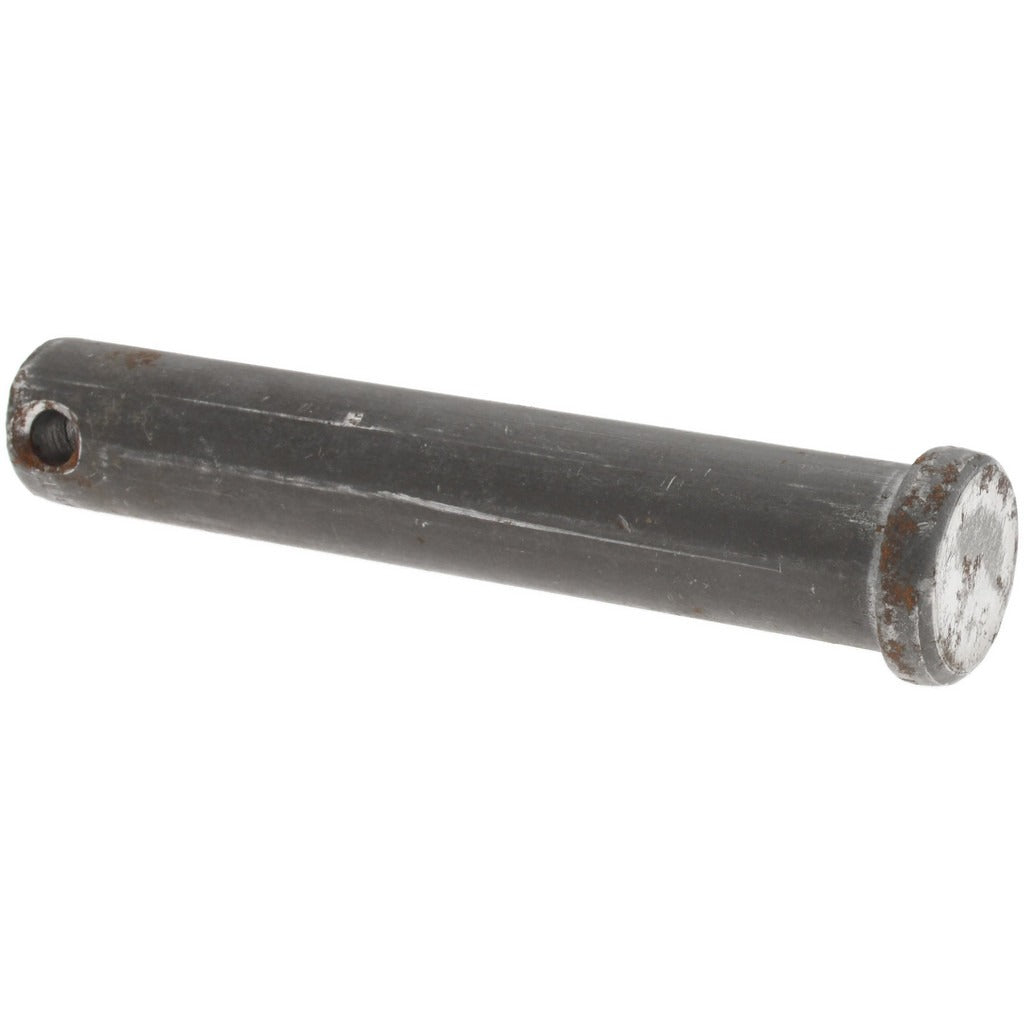

The VALUE COLLECTION P20277 is a standard clevis pin used to create removable pivot connections in mechanical linkages, yokes, and clevis assemblies. Machined from 1010/1018 steel with an uncoated finish, this pin measures 0.5 inches in diameter with an overall length of 2.75 inches and a usable length of 2.594 inches. A 0.156-inch cotter pin hole is pre-drilled for secure retention. It is a general-purpose fastener suited to light-duty mechanical and structural applications in industrial, HVAC, plumbing, and agricultural equipment service.

This clevis pin is appropriate for use in control rod linkages, actuator arms, and hinged bracket connections found in a wide range of equipment. Its uncoated carbon steel construction makes it suitable for dry or protected indoor environments. Trade technicians and maintenance professionals use this style of pin when servicing damper linkages, control arms, and similar pivoting assemblies requiring a removable, reusable fastener. Sold individually, with a minimum order quantity of 5 pieces.

Key Features

• 0.5-inch pin diameter for standard clevis and yoke fitment
• 2.75-inch overall length with 2.594-inch usable length
• Pre-drilled 0.156-inch cotter pin hole for positive retention
• 1010/1018 carbon steel construction for reliable shear strength
• Uncoated finish suitable for protected indoor mechanical assemblies

Compatibility

Designed as a general-purpose replacement clevis pin for mechanical linkage and pivot applications requiring a 0.5-inch pin diameter. Verify usable length and hole position against existing hardware before installation.

Installation Notes

Clevis pins are typically installed by maintenance technicians and mechanical service professionals. Before servicing any linkage or actuator assembly, de-energize and lock out the connected equipment per applicable OSHA lockout/tagout procedures. Insert the pin through aligned clevis and yoke bores, then secure with an appropriately sized cotter pin through the retention hole. Do not substitute a clevis pin rated for a smaller shear load than the application requires.
