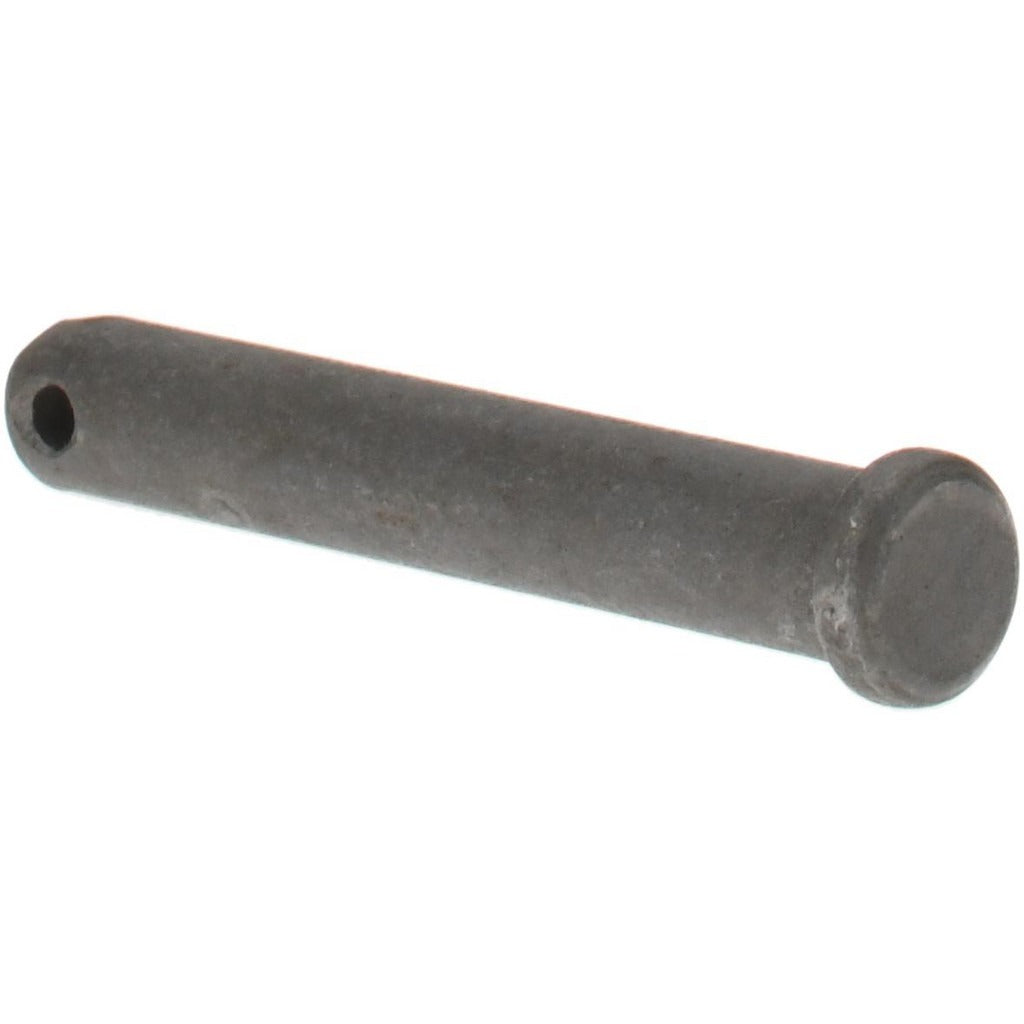

Value Collection P20274 Clevis Pin 7/16 in 2-3/4 in Oal Steel

Product Description

The VALUE COLLECTION P20274 is a standard clevis pin used to create pivot and hinge connections in mechanical linkages, rod-end assemblies, and general fastening applications. Machined from 1010/1018 steel with an uncoated finish, this pin measures 0.4375 inches in diameter and 2.75 inches in overall length, with a usable length of 2.59375 inches. A 0.15625-inch cotter pin or snap ring hole is drilled through the shank near the retaining end. Maintenance technicians, millwrights, and general tradespeople install this type of pin to join clevis brackets, clevises, and linkage components across a wide range of equipment and machinery.

This clevis pin is suited for residential and light commercial mechanical assemblies wherever a removable pivot fastener is required. Typical applications include actuator rod ends, linkage arms, gate hardware, HVAC damper linkages, and general mechanical assemblies that require a secure but removable pin connection. The uncoated steel construction makes it suitable for indoor and low-exposure environments. It is sold individually with a minimum order quantity of 5 units.

Key Features

• 0.4375-inch pin diameter for precise fit in standard clevis bracket bores
• 2.75-inch overall length with 2.59375 inches of usable shank
• 0.15625-inch cotter hole for positive retention with a cotter pin or snap ring
• 1010/1018 steel construction provides reliable shear strength for general-duty use
• Uncoated finish — suitable for dry or indoor mechanical assemblies

Compatibility

Designed as a standard-dimension clevis pin for general mechanical and fastening applications requiring a 7/16-inch diameter pivot pin with a 2-3/4-inch overall length.

Installation Notes

Clevis pins are installed by inserting the shank through aligned clevis and yoke bores, then securing the retaining end with a cotter pin, snap ring, or hairpin clip through the cross-drilled hole. Verify bore alignment before driving the pin to avoid galling. Always de-energize or lock out any actuator or linkage assembly before removing or replacing a clevis pin. Inspect mating bores for wear or elongation prior to installation.
