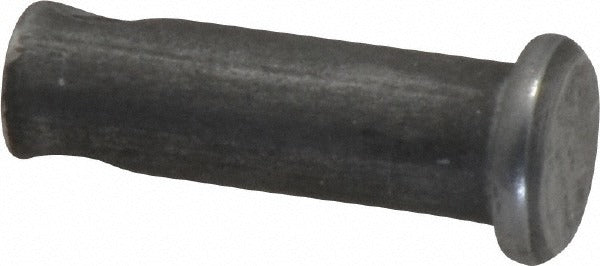

Value Collection P20255 Standard Clevis Pin 5/16 in Steel

Product Description

The VALUE COLLECTION P20255 is a standard clevis pin used to create removable pivot connections in linkage assemblies, rod ends, and mechanical joints. Machined from 1010-1018 grade steel with an uncoated finish, this pin measures 5/16 inches in diameter and 31/32 inches in overall length. The usable length is 53/64 inches, with a cotter pin hole sized at 9/64 inches to accept standard retaining hardware. It is a common fastening component used by millwrights, maintenance technicians, and assembly mechanics working on industrial equipment, actuators, and mechanical control linkages.

This clevis pin is suited for light-duty to moderate-duty mechanical assemblies where a removable, pin-retained pivot point is required. Typical applications include agricultural equipment linkages, HVAC damper arm connections, pneumatic cylinder rod ends, and general fabrication work. The uncoated steel construction is appropriate for dry or protected indoor environments. Sold individually per package with a minimum order quantity of 10 units.

Key Features

• 5/16 inch pin diameter for standard clevis and rod-end fitment
• 31/32 inch overall length with 53/64 inch usable length
• 9/64 inch cotter pin hole for secure retaining pin installation
• 1010-1018 grade steel construction for reliable shear strength in light to moderate loads
• Uncoated finish suitable for protected or indoor mechanical assemblies

Compatibility

Designed as a standard-dimension clevis pin for use in mechanical linkages, rod ends, and pivot assemblies requiring a 5/16 inch pin diameter and 31/32 inch overall length.

Installation Notes

Clevis pins are typically installed by maintenance technicians or millwrights as part of linkage and pivot assembly work. Always de-energize and lock out any connected mechanical or electrical system before replacing a clevis pin under load. Insert the pin through aligned clevis and rod-end bores, then secure with an appropriately sized cotter pin or hairpin clip through the 9/64 inch retaining hole. Inspect mating bores for wear or deformation before installation to ensure proper fit and load transfer.
