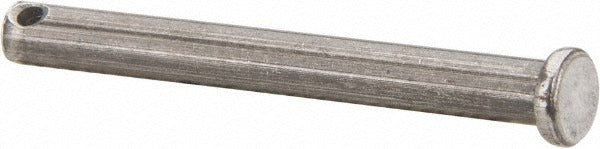

Value Collection P20249 Clevis Pin 0.25 in Steel

Product Description

The VALUE COLLECTION P20249 is a standard clevis pin designed for mechanical linkage applications where a removable fastener is needed to connect two components through aligned holes. With a 0.25-inch pin diameter and an overall length of 2.375 inches, this pin provides a usable length of 2.281 inches and accepts a 0.094-inch cotter pin or retaining wire through its cross-hole. Manufactured from 1010-1018 steel with an uncoated finish, it suits general-duty industrial and mechanical service environments. Tradespeople and maintenance technicians working on HVAC damper linkages, valve actuators, and mechanical control assemblies commonly reach for this style of pin.

This clevis pin fits applications requiring a 0.25-inch diameter through-pin in pivot joints, yoke assemblies, and light-duty linkage connections. Typical install scenarios include HVAC actuator arms, control rod linkages, and general equipment maintenance where a quick-disconnect pin fastener is specified. The 3/32-inch retaining hole allows use of a standard cotter pin to secure the assembly. This pin is sold individually with a minimum order quantity of 25 pieces per order, making it suitable for stocking as a general shop or service van consumable.

Key Features

• 0.25-inch pin diameter fits standard clevis and yoke bores in that size range
• 2.375-inch overall length with 2.281 inches of usable grip length
• 3/32-inch cross-hole accepts a standard cotter pin for positive retention
• 1010-1018 steel construction provides adequate strength for light-to-medium mechanical linkage loads
• Uncoated finish suits dry or lightly lubricated indoor mechanical environments

Compatibility

Designed as a general-purpose replacement clevis pin for mechanical linkage assemblies requiring a 0.25-inch pin diameter and approximately 2.375-inch overall length with a 3/32-inch retaining hole.

Installation Notes

Clevis pins are typically installed and serviced by mechanical tradespeople and HVAC technicians during actuator, damper, or control linkage maintenance. Always de-energize and lock out the associated mechanical or electrical system before removing or replacing a clevis pin in a live linkage. Secure the installed pin with an appropriately sized cotter pin through the cross-hole to prevent backing out during operation. Discard and replace any pin showing visible wear, bending, or corrosion.
