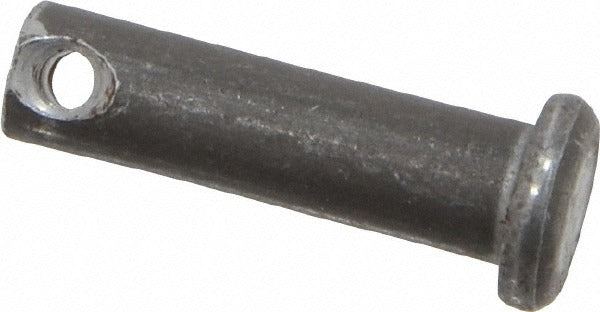

Value Collection P20239 Standard Clevis Pin 0.25 in

Product Description

The VALUE COLLECTION P20239 is a standard clevis pin machined from 1010-1018 grade steel with an uncoated finish. It features a 0.25 inch pin diameter and an overall length of 0.875 inches, with a usable length of 0.781 inches and a 0.094 inch cotter hole. Clevis pins are used to secure clevis brackets to mating components in linkage assemblies, allowing controlled rotational or pivoting movement. This pin is installed by maintenance technicians, millwrights, and mechanics working on mechanical linkage systems across industrial, HVAC, and general equipment applications.

This clevis pin fits standard clevis bracket assemblies where a 0.25 inch pin diameter is required. It is suited for light-duty linkage connections in damper actuator linkages, control rod assemblies, and similar mechanical pivot joints. The uncoated steel construction is appropriate for dry or protected indoor environments. This item is sold individually but must be ordered in multiples of 25 per manufacturer minimum order quantity.

Key Features

• 0.25 inch pin diameter for standard clevis bracket fitment
• 0.875 inch overall length with 0.781 inch usable length
• 0.094 inch cotter hole for retaining pin or cotter pin installation
• 1010-1018 grade steel construction for reliable strength in light-duty linkage applications
• Uncoated finish suitable for protected indoor assemblies
• Minimum order quantity of 25 units makes this suitable for stocking service vehicles or shop inventory

Compatibility

Designed as an OEM-style replacement or service-stock clevis pin for mechanical linkage assemblies requiring a 0.25 inch diameter standard clevis pin with a 3/32 inch cotter hole.

Installation Notes

Clevis pins are typically installed by mechanics, millwrights, or HVAC technicians servicing damper linkages or control rod assemblies. Disengage and de-energize any actuator or mechanical drive connected to the linkage before removing or installing the pin. A cotter pin or retaining clip should be used through the 0.094 inch hole to secure the pin in service. Do not reuse a bent or deformed clevis pin.
