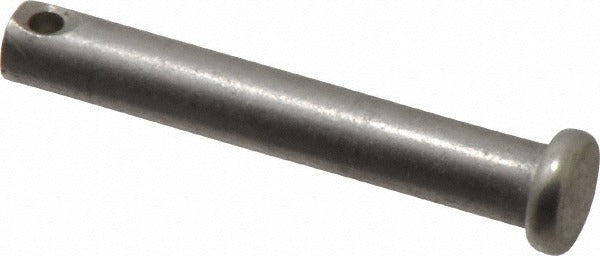

Value Collection P20210 Clevis Pin 1/4 in Stainless Steel

Product Description

The VALUE COLLECTION P20210 is a standard clevis pin machined from 18-8 stainless steel with an uncoated finish. At 0.25 inches in diameter and 1.625 inches overall length, this pin provides a clean, corrosion-resistant pivot or linkage connection in mechanical assemblies. The 3/32 inch cotter pin hole is positioned to allow 1.531 inches of usable length within the clevis or bracket. Installers in HVAC, plumbing, and general mechanical service will recognize this as a straightforward fastener for linkage rods, actuator arms, damper assemblies, and similar pinned connections requiring a secure yet removable joint.

This clevis pin is suited for light-duty mechanical linkage applications across residential and commercial equipment. Typical uses include damper rod connections, valve actuator linkages, and control arm pivot points where a small-diameter stainless pin is required. Its compact size makes it appropriate for tight-clearance assemblies found in HVAC actuators, zone damper hardware, and related mechanical components. The 18-8 stainless steel construction makes it a practical choice in environments where mild corrosion resistance is required.

Key Features

• 18-8 stainless steel construction provides corrosion resistance in damp or outdoor-adjacent environments
• Uncoated finish maintains consistent dimensional tolerances at the pin surface
• 0.25 inch pin diameter fits standard light-duty clevis brackets and linkage hardware
• 3/32 inch cotter pin hole secures the pin in position after installation
• 1.531 inch usable length accommodates typical clevis jaw or bracket thicknesses

Compatibility

Designed as a standard-dimension clevis pin for light-duty mechanical linkage assemblies where a 0.25 inch diameter stainless steel pin with a 3/32 inch cotter hole is specified.

Installation Notes

Installation is performed by mechanical technicians or trade professionals working on linkage and actuator assemblies. Relieve any tension or load on the linkage before removing or inserting the pin. A correctly sized cotter pin or hair pin clip should be inserted through the 3/32 inch hole after seating to prevent the pin from backing out during operation. Verify pin diameter and usable length against the clevis or bracket specification before installation to confirm proper fit.
