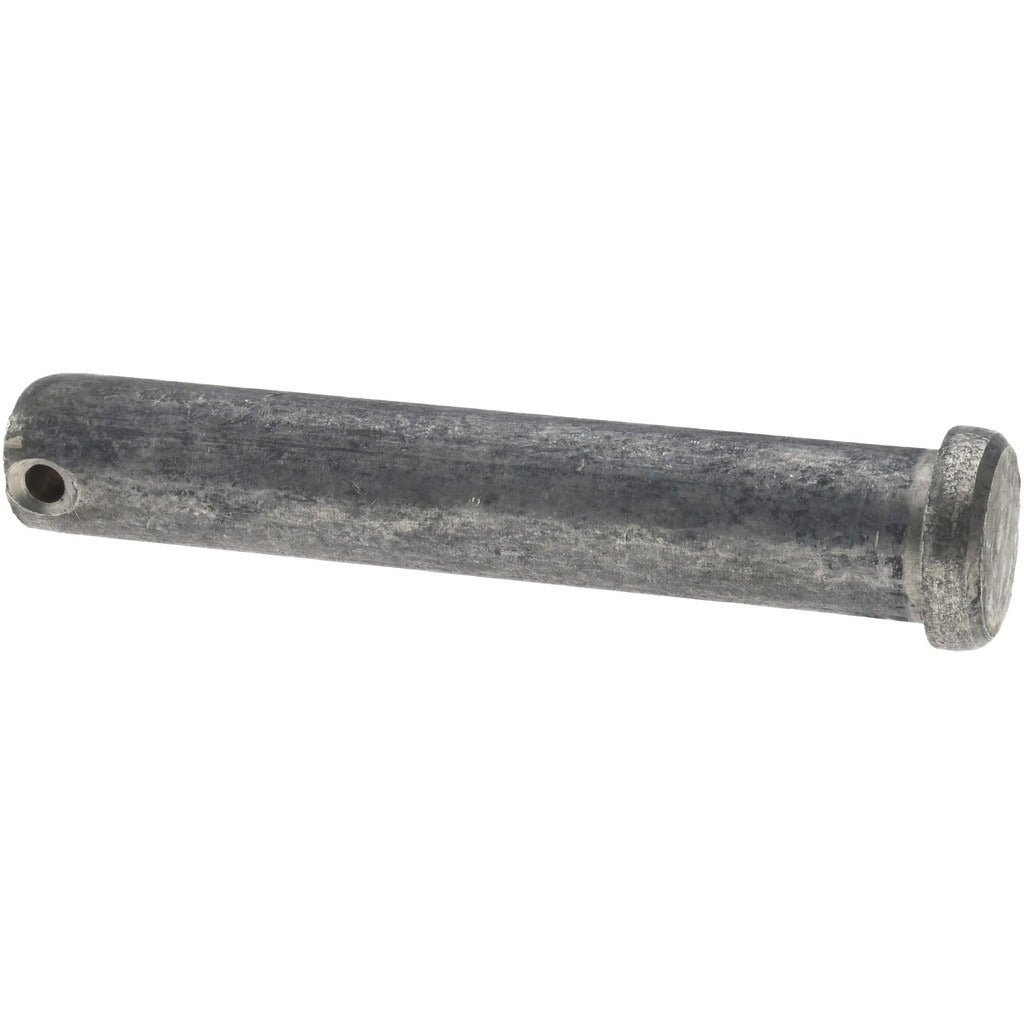

Value Collection P20177 Standard Clevis Pin 0.625in Stainless

Product Description

The VALUE COLLECTION P20177 is a standard clevis pin machined from 18-8 stainless steel. It carries a 0.625-inch pin diameter and an overall length (OAL) of 3.5 inches, with a usable length of 3.344 inches. The cotter pin hole measures 0.156 inches in diameter. The uncoated stainless steel construction resists corrosion in wet or chemically active environments. Clevis pins of this type are used to create pivoting pin-and-clevis connections in mechanical linkages, cylinder rod ends, and control assemblies across HVAC, plumbing, and general mechanical systems. Licensed tradespeople and maintenance technicians select this pin when a removable, load-bearing pivot fastener is required.

This clevis pin suits applications where a standard 0.625-inch diameter pivot pin is needed in a clevis bracket or fork-end connection. Typical install scenarios include actuator linkages, valve control arms, and mechanical support assemblies in commercial and residential mechanical systems. The 18-8 stainless steel grade makes it appropriate for indoor and outdoor environments where mild corrosion resistance is required. It is sold individually and intended for direct replacement or new assembly work.

Key Features

• 0.625-inch pin diameter with 3.5-inch overall length for standard clevis fitment
• 3.344-inch usable length between head and cotter pin hole
• 0.156-inch cotter pin hole for standard retaining pin or cotter key
• 18-8 stainless steel construction for corrosion resistance in wet environments
• Uncoated finish — no risk of coating interference in tight-tolerance clevis bores

Compatibility

Designed as an OEM-style replacement or direct-fit clevis pin for mechanical linkage assemblies requiring a 0.625-inch diameter standard clevis pin with a 3.5-inch overall length.

Installation Notes

Installation requires inserting the pin through aligned clevis and rod-end bores and securing it with a cotter pin or retaining clip through the 0.156-inch hole. Disengage or de-energize any actuator, cylinder, or mechanical load on the linkage before removing or installing the pin. Standard hand tools are sufficient for most clevis pin replacements. Confirm bore alignment and pin fit before applying load to the assembly.
