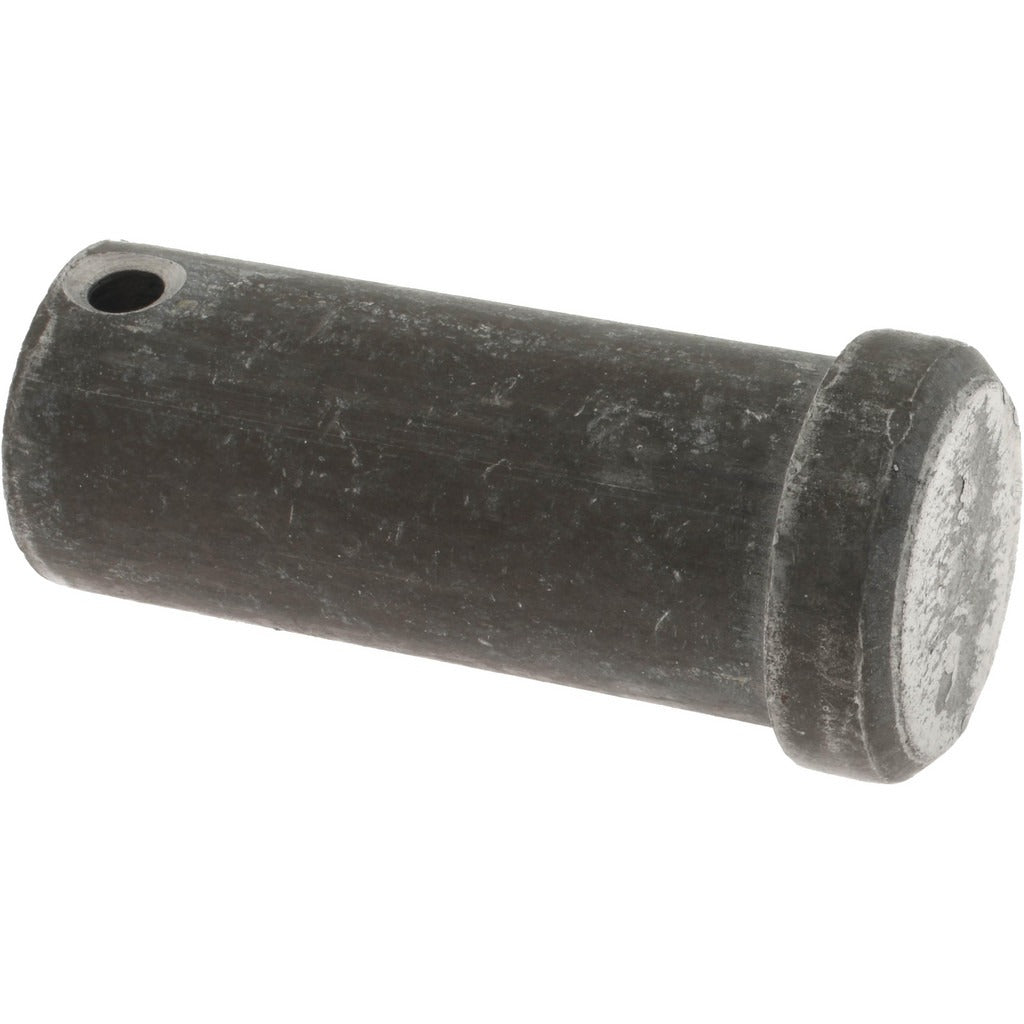

Value Collection P20059 Clevis Pin 1 in Uncoated Steel

Product Description

The VALUE COLLECTION P20059 is a standard clevis pin used to create removable, pivot-style connections in mechanical linkages, clevis brackets, and similar fastening applications. Machined from 1010/1018 steel with an uncoated finish, this pin measures 1 inch in diameter and 2-1/4 inches in overall length (OAL), with a usable length of 2-3/64 inches. A 13/64-inch cross-hole accepts a cotter pin or clip to retain the pin in position under load. Maintenance technicians, millwrights, and general contractors install these pins wherever a quick-release mechanical connection is needed.

This clevis pin is suited for use in a wide range of light-to-medium-duty mechanical assemblies including linkage rods, cylinder clevises, hitch connections, and bracket pivot points. The 1010/1018 steel construction provides adequate tensile strength for standard load-bearing applications where corrosion resistance is not a primary requirement. The uncoated surface finish means the pin is ready to install as-is or can be lubricated for applications involving frequent rotation or oscillation.

Key Features

• 1 inch pin diameter for use in standard 1-inch clevis bores
• 2-1/4 inch overall length with 2-3/64 inch usable length
• 13/64-inch cross-hole sized for cotter pin or snap ring retention
• 1010/1018 steel construction for reliable tensile strength in standard mechanical service
• Uncoated finish — compatible with field-applied lubricants or protective coatings

Compatibility

Designed as a standard clevis pin replacement for mechanical linkage assemblies, clevis brackets, and pivot connections requiring a 1-inch pin diameter and 2-1/4-inch OAL form factor.

Installation Notes

Clevis pins are typically installed by maintenance technicians or millwrights as part of mechanical linkage assembly or repair. Before servicing any connected system, de-energize all power sources, relieve hydraulic or pneumatic pressure, and secure any suspended loads. Insert the pin fully through the clevis bore and usable length, then install a properly sized cotter pin or retaining clip through the cross-hole to prevent backing out during operation. Do not use this pin in applications requiring corrosion resistance without applying an appropriate protective coating or lubricant.
