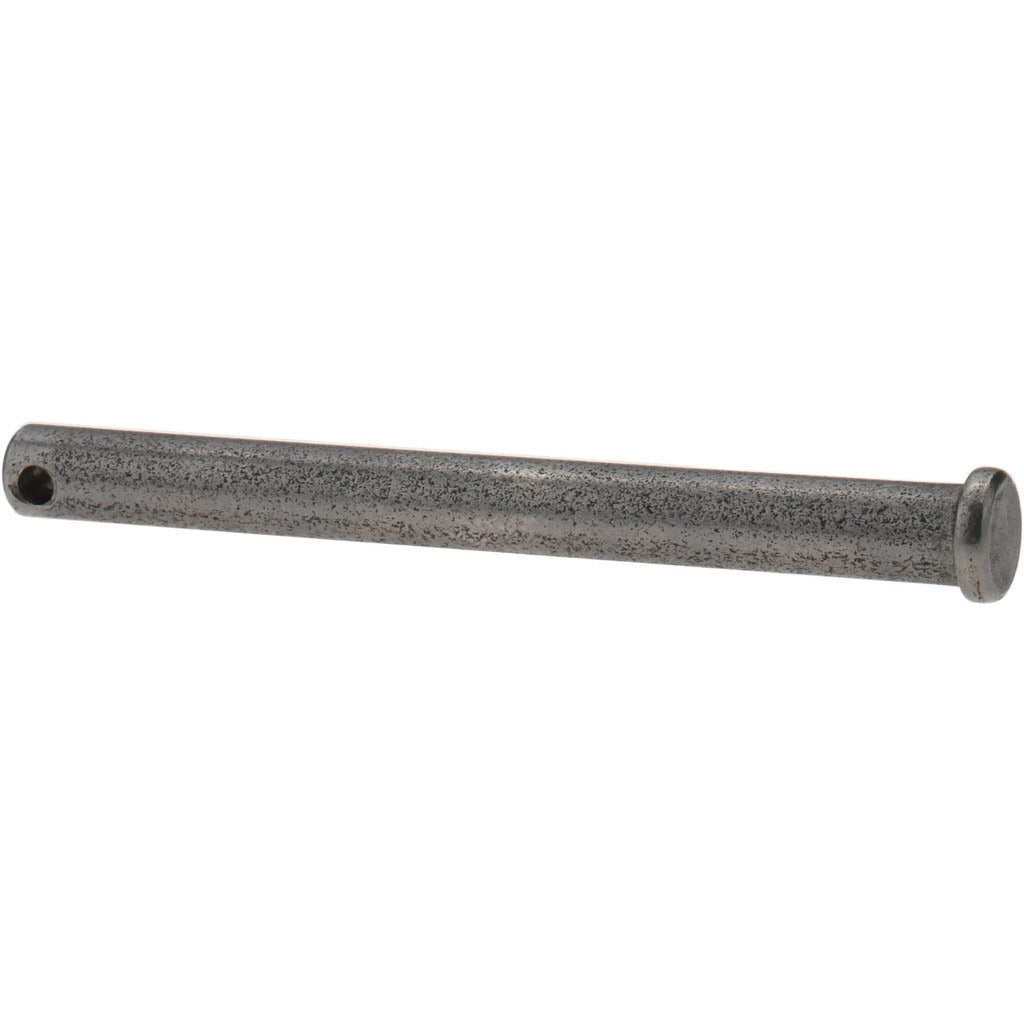

Value Collection P20052 Clevis Pin 3/8 in Dia 4 in Oal Steel

Product Description

The VALUE COLLECTION P20052 is a standard clevis pin used to create removable pivot connections in mechanical assemblies, linkages, and clevis bracket applications. Machined from 1010/1018 steel with an uncoated finish, this pin measures 3/8 inches in diameter and 4 inches in overall length, with a usable length of 3-27/32 inches. A 5/32-inch cotter pin hole is drilled through the shank to accept a cotter pin or snap ring for positive retention. Machinists, millwrights, maintenance technicians, and general fabricators install this type of hardware across industrial and mechanical service work.

This clevis pin is suited for light-to-medium duty pivot and linkage applications in both industrial and commercial maintenance settings. Typical uses include hydraulic cylinder rod ends, control linkages, gate latches, and equipment frame connections where a secure but removable pin joint is required. The uncoated steel construction is appropriate for dry or protected indoor environments. It is sold individually, with a minimum order quantity of 5 pieces.

Key Features

• 3/8-inch pin diameter for standard clevis bracket fitment
• 4-inch overall length with 3-27/32 inches of usable shank length
• 5/32-inch cotter pin hole for positive retention with a cotter pin or snap ring
• 1010/1018 steel construction for reliable strength in light-to-medium duty linkage applications
• Uncoated finish suitable for protected indoor or dry service environments

Compatibility

Designed as a standard-dimension clevis pin for use in mechanical linkage assemblies, clevis bracket connections, and pivot joint applications that accept a 3/8-inch diameter pin.

Installation Notes

Installation is typically performed by a machinist, millwright, or maintenance technician. Before replacing or installing a clevis pin in any powered assembly, de-energize and lock out the equipment per OSHA lockout/tagout procedures. Insert the pin through aligned clevis and rod-end bores, then secure with an appropriate cotter pin or snap ring through the 5/32-inch retention hole. Do not force the pin into undersized bores; verify bore diameter matches 3/8 inches before installation.
