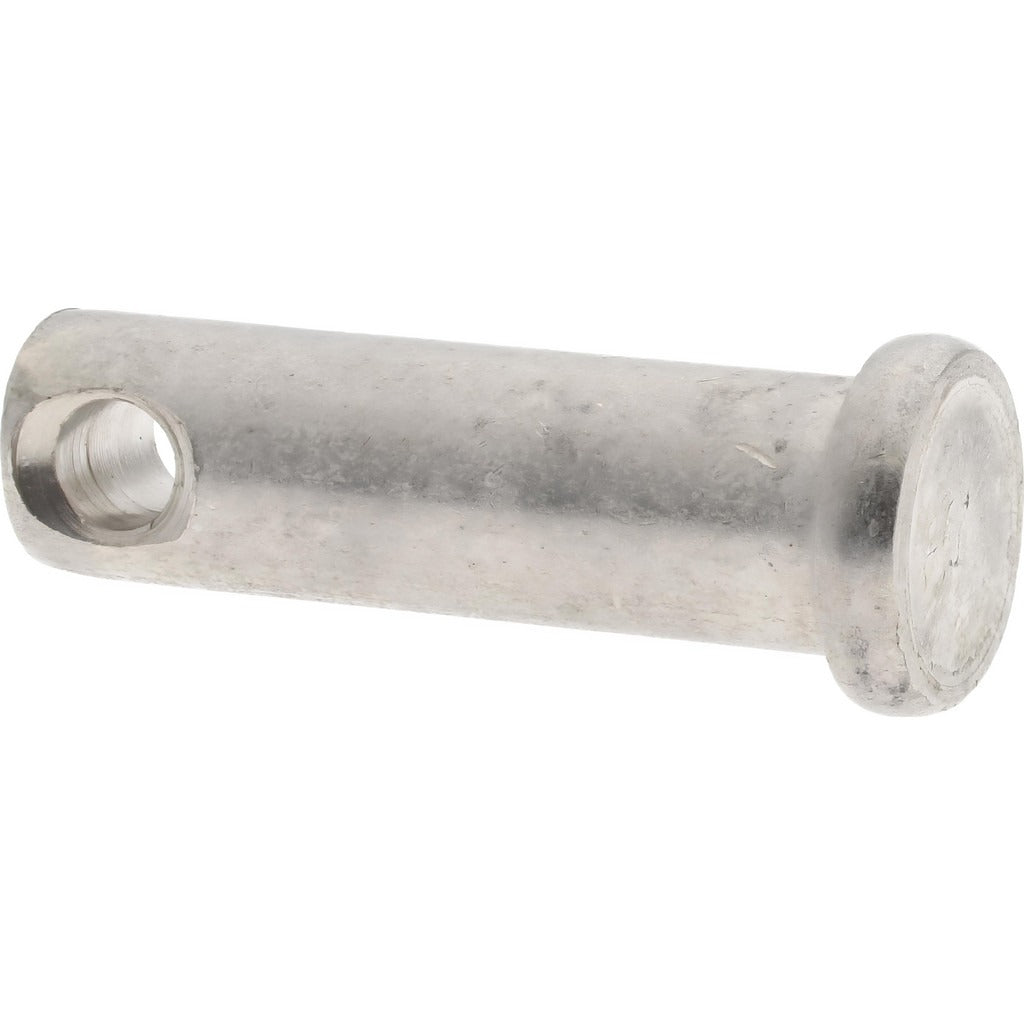

Value Collection P20039 Clevis Pin 5/16 in Stainless

Product Description

The VALUE COLLECTION P20039 is a standard clevis pin designed for use in mechanical linkage and fastening applications. It features a pin diameter of 5/16 inches, an overall length (OAL) of 1 inch, and a usable length of 55/64 inches. The cotter pin hole measures 9/64 inches in diameter. Constructed from 18-8 stainless steel with an uncoated finish, this clevis pin offers corrosion resistance suitable for both indoor and outdoor mechanical assemblies. It is installed by millwrights, maintenance technicians, and mechanical tradespeople in a wide range of industrial and commercial settings.

This clevis pin is suited for use in mechanical linkage systems, control rod assemblies, and pivot-point connections where a removable, load-bearing pin fastener is required. Typical applications include actuator rod ends, cable clevis fittings, and hinged bracket assemblies in light industrial, HVAC control linkages, and general mechanical systems. The uncoated 18-8 stainless steel construction makes it appropriate for environments where mild corrosion resistance is needed without additional surface treatment.

Key Features

• 5/16 inch pin diameter for use with standard clevis fittings of matching bore
• 1 inch overall length with 55/64 inch usable length for compact linkage applications
• 9/64 inch cotter pin hole for positive retention with a standard cotter pin or snap ring
• 18-8 stainless steel construction provides corrosion resistance without a protective coating
• Uncoated finish maintains dimensional consistency for precision-fit clevis connections

Compatibility

Designed as a standard clevis pin for use with clevis fittings and rod end assemblies requiring a 5/16 inch pin diameter and 1 inch overall length.

Installation Notes

Clevis pins are typically installed by maintenance technicians or mechanical tradespeople during linkage assembly or repair. Always relieve mechanical load and de-energize any actuated system before removing or installing a clevis pin. A cotter pin or snap ring of the appropriate size should be installed through the 9/64 inch retention hole after insertion to prevent pin migration. Do not substitute a pin of a different diameter or material grade without verifying load and corrosion requirements for the application.
