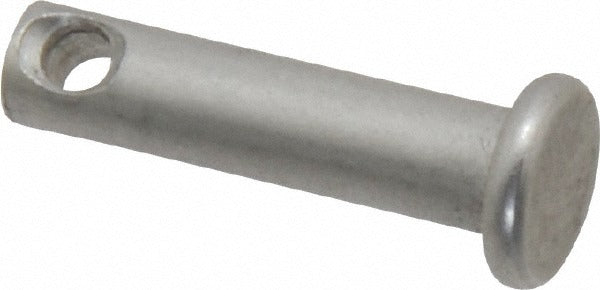

Value Collection P20029 Clevis Pin 3/16 in Stainless

Product Description

The VALUE COLLECTION P20029 is a standard clevis pin machined from 18-8 stainless steel with an uncoated finish. It measures 3/16 inches in diameter and 3/4 inches in overall length, with a usable length of 21/32 inches and a 3/32 inch cotter or snap-ring hole. Clevis pins serve as pivot fasteners in linkage assemblies, connecting clevis brackets and rod ends in mechanical, HVAC actuator, and control linkage applications. The uncoated 18-8 stainless construction provides corrosion resistance suitable for both indoor and outdoor environments without added surface treatment.

This pin is suited for light-duty mechanical linkage work encountered in HVAC damper actuator arms, plumbing valve linkages, and general mechanical assemblies. Its compact 3/4 inch overall length and 3/16 inch diameter make it appropriate for small-scale pivot connections where a standard clevis configuration is required. Technicians and mechanics working on control linkages, rod ends, and bracket assemblies in trade and industrial settings will find this pin a direct fit for common clevis fastener positions.

Key Features

• 18-8 stainless steel construction for corrosion resistance without coating
• 3/16 inch pin diameter for standard clevis linkage applications
• 21/32 inch usable length between head and cotter hole
• 3/32 inch hole diameter accommodates standard cotter pins or snap rings
• Uncoated finish — no flaking or coating delamination over service life

Compatibility

Designed as a standard clevis pin for mechanical linkage assemblies requiring a 3/16 inch diameter pivot fastener with a 3/32 inch retaining hole.

Installation Notes

Clevis pins are typically installed and serviced by HVAC technicians, plumbers, or millwrights working on actuator arms, valve linkages, or mechanical control assemblies. De-energize and lock out any actuator or mechanical assembly before removing or installing clevis pins. A cotter pin or snap ring of the correct diameter for the 3/32 inch hole should always be used to retain the pin after installation. Never reuse a visibly worn or deformed clevis pin in a safety-critical linkage.
