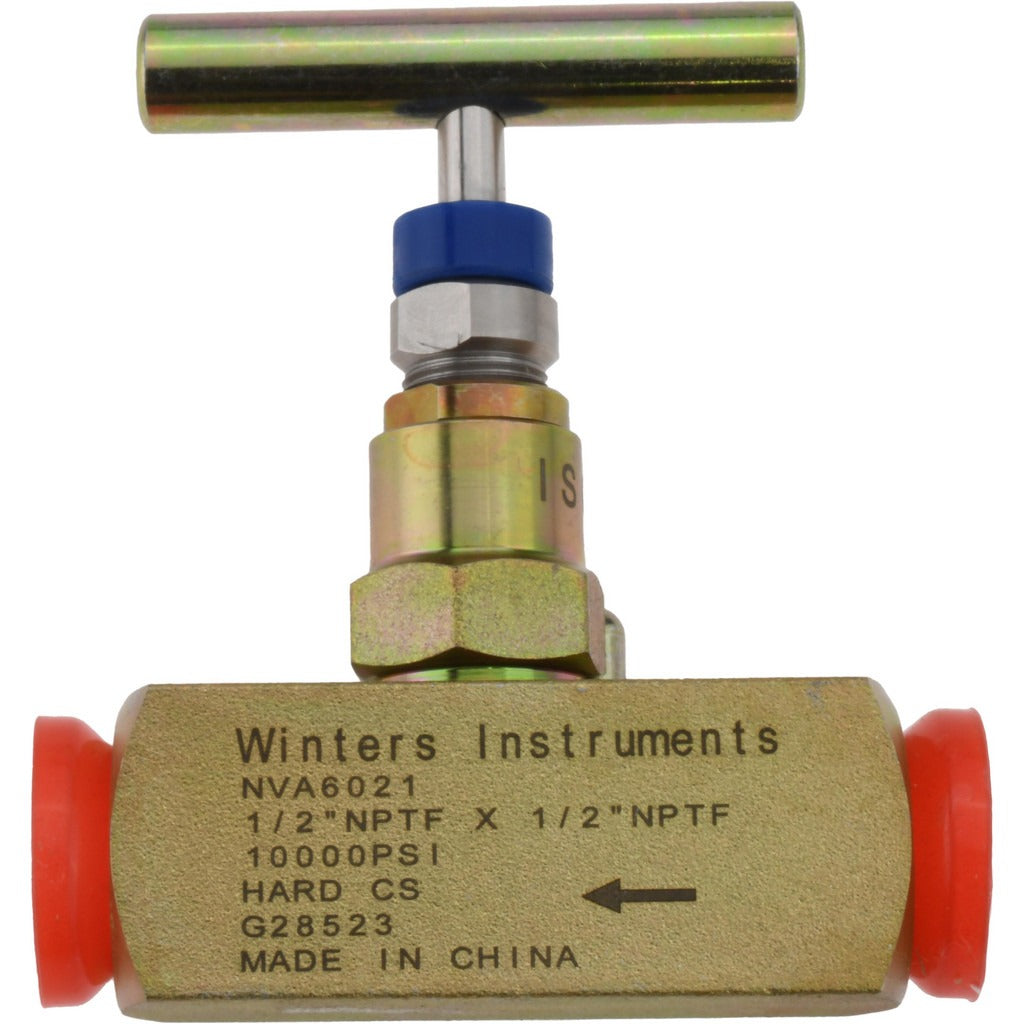

Value Collection NVA6021 Straight Needle Valve 1/2 Inch

Product Description

The VALUE COLLECTION NVA6021 is a straight-pattern needle valve designed for precise flow control in high-pressure fluid and gas systems. Built with an alloy body and a hard seat configuration, it handles working pressures up to 10,000 psi and operating temperatures ranging from -20 degrees F to 500 degrees F. The 1/2-inch pipe size and matching 1/2-inch thread size make it a direct fit for standard piping layouts. Plumbers, pipefitters, and industrial maintenance technicians install this type of valve where fine throttling control and reliable shutoff under high pressure are required.

This needle valve is suited for use in hydraulic systems, instrumentation lines, compressed gas service, and industrial process piping where pressure ratings and temperature range are critical selection factors. The straight-body configuration simplifies inline installation and reduces flow restriction compared to angled designs. Its hard seat construction provides repeatable seating performance across a wide range of service cycles, making it appropriate for both residential and light commercial mechanical applications where high-pressure control points are common.

Key Features

• Straight-pattern body for straightforward inline installation
• Hard seat design for repeatable, leak-resistant shutoff
• Alloy body construction rated for demanding service conditions
• Maximum working pressure of 10,000 psi
• Wide operating temperature range: -20 degrees F to 500 degrees F
• 1/2-inch pipe and thread size for standard piping compatibility

Compatibility

Designed as an OEM-style replacement or new-installation needle valve for 1/2-inch pipe systems requiring high-pressure flow control service.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable IPC and ASME piping codes. Depressurize and isolate the line completely before removing any existing valve or making new connections. Confirm thread type and sealant compatibility with the service media before assembly. Do not exceed the rated working pressure or temperature limits of the valve.
