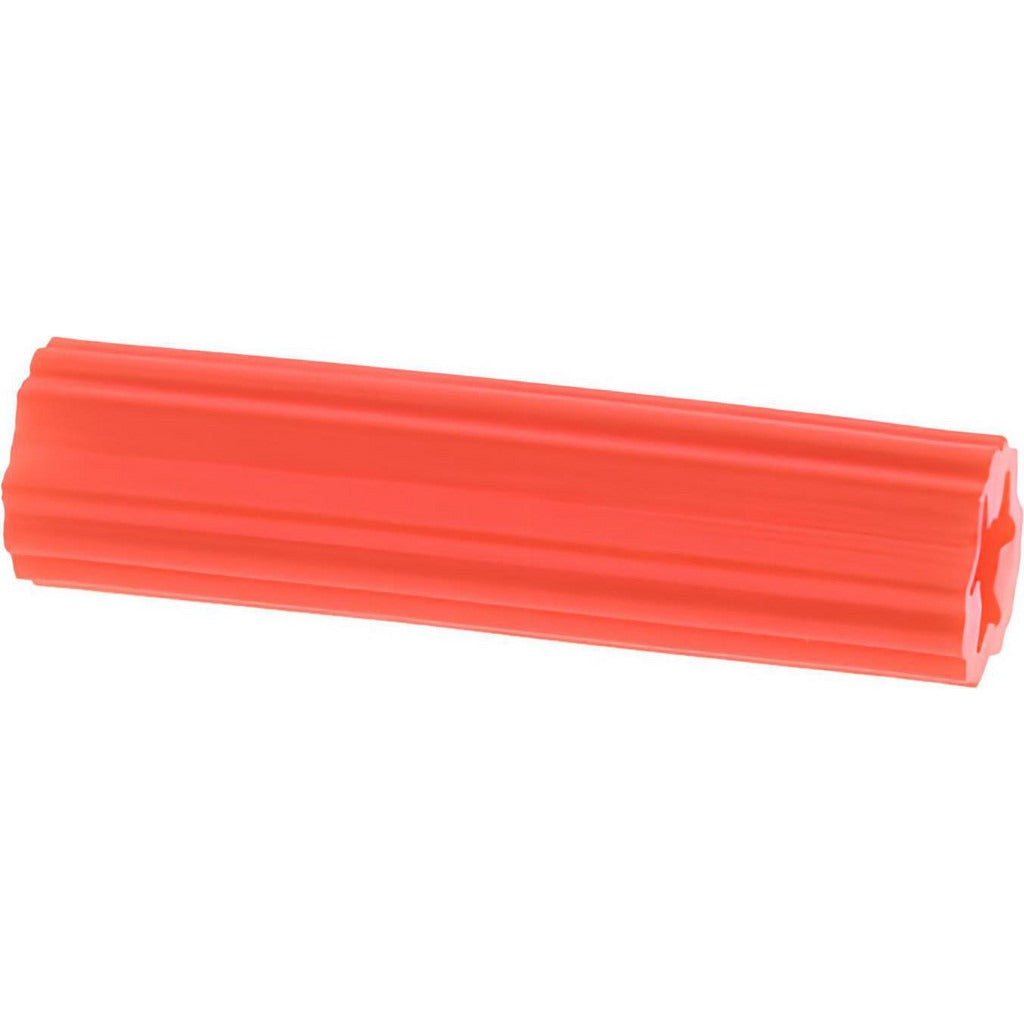

Value Collection NFC2004 Plastic Concrete Anchor 15/64 in

Product Description

The VALUE COLLECTION NFC2004 is a plastic concrete anchor designed to secure screws into concrete, masonry, and similar hard substrates. Measuring 15/64 inches in diameter and 1 inch in overall length, this anchor accepts No. 7 through No. 9 screws and creates a reliable mechanical hold in pre-drilled holes. The plastic body expands as the screw is driven, locking the fastener in place without adhesives or additional hardware. It is commonly installed by electricians, plumbers, HVAC technicians, and general contractors when mounting conduit straps, pipe hangers, equipment brackets, or other fixtures to concrete or block walls.

This anchor is suited for light-duty fastening applications in residential and commercial settings. Typical uses include securing electrical boxes, pipe supports, equipment feet, and surface-mounted hardware to poured concrete, concrete block, or brick. The 15/64-inch diameter and 1-inch length make it a compact option for shallow embedment tasks where a smaller screw size is specified. It is sold individually but requires a minimum order of 100 units, making it appropriate for contractors stocking shop supplies or completing multi-point installations.

Key Features

• 15/64-inch diameter fits standard masonry drill bit for that bore size
• 1-inch overall length suits shallow embedment applications
• Plastic body expands on screw drive for a secure mechanical lock
• Compatible with No. 7 to No. 9 screws
• No adhesive required — install with standard hand or power tools

Compatibility

Designed for use with No. 7 to No. 9 screws. Suitable for installation into concrete, masonry block, and similar hard substrates requiring a 15/64-inch pilot hole.

Installation Notes

Installation is performed by drilling a clean 15/64-inch hole to the required depth using a hammer drill and masonry bit, then inserting the anchor flush with the surface before driving the screw. Hole depth should accommodate the full anchor length plus any clearance required by the fastener. Do not overdrive the screw, as excessive torque can strip the plastic body and reduce holding strength. Follow applicable building codes and manufacturer torque guidance for the connected fixture when load ratings are a factor.
