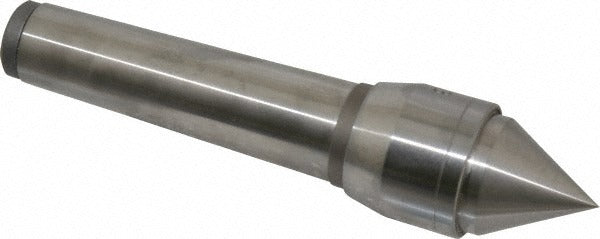

Value Collection MT-3 Live Center Taper Shank 661 Lb

Product Description

The VALUE COLLECTION MT-3 is a taper shank live center designed for use in metalworking lathes and turning operations. Fitted with a Morse Taper 3 shank, this live center mounts directly into the tailstock of a compatible lathe and rotates with the workpiece to reduce friction and heat during cutting. The standard point style and 60-degree included angle suit general-purpose turning applications. It supports workpieces up to 661 pounds, making it appropriate for a wide range of production and toolroom environments. The steel construction provides durability under continuous rotational load. Machinists and machine tool technicians are the primary installers and users of this tooling.

This live center is suited for use in manual engine lathes, turret lathes, and CNC turning centers equipped with a Morse Taper 3 tailstock bore. It is appropriate for both light production and heavy-duty turning tasks within the 661-pound workpiece weight capacity. The standard point geometry works with most cylindrical and shaft-type workpieces requiring center support at the tailstock end. Typical applications include shaft turning, facing, and between-centers grinding setups in job shops, maintenance facilities, and production machine shops.

Key Features

• Morse Taper 3 shank for direct tailstock mounting on compatible lathes
• Supports workpieces up to 661 pounds
• Standard point style with 60-degree included angle for general-purpose turning
• Steel construction for durability under continuous load
• Point length of 1.08 inches and head diameter of 1.27 inches for consistent center engagement
• Live rotating design reduces friction and heat compared to dead centers

Compatibility

Designed for use in lathe tailstocks with a Morse Taper 3 bore. Verify tailstock taper size before installation to confirm proper fit.

Installation Notes

Installation is performed by qualified machinists or machine tool technicians. Before mounting, clean the tailstock bore and the taper shank of any debris, oil, or burrs to ensure full taper contact. Insert the taper shank with a firm, direct push to seat it properly in the tailstock bore. Never use the live center beyond its rated workpiece weight capacity, and inspect the rotating assembly periodically for bearing wear or runout during service.
