Value Collection MSTI03702000-050BX Machine Screw 3/8-16x2

Product Description

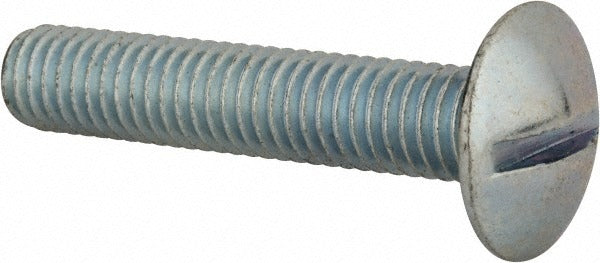

The VALUE COLLECTION MSTI03702000-050BX is a 3/8-16 x 2 inch truss head machine screw with a slotted drive, manufactured from Grade 2 steel with a zinc-plated finish. The truss head profile delivers a wide, low-profile bearing surface, making it well suited for applications where a standard pan or hex head would not provide adequate clamping area. The zinc plating provides basic corrosion resistance for general indoor and light-duty service environments. Conforming to ASME B18.6.3, this fastener meets a widely recognized dimensional and performance standard for inch-series machine screws. This box quantity is sold in multiples of 50 pieces.

These machine screws are used across HVAC, electrical, plumbing, and general mechanical assembly work wherever a 3/8-16 thread and a low-profile head are required. Typical applications include panel mounting, equipment enclosures, junction box assembly, and light structural fastening. The slotted drive is compatible with standard flat-blade screwdrivers and slotted power bits, tools commonly found on any service truck. The 2-inch length under head suits moderate-depth clearance holes in sheet metal, plastic, or light-gauge structural members.

Key Features

• 3/8-16 unified coarse thread for reliable engagement in standard tapped holes and nuts
• Truss head provides a wide, low-profile bearing surface without a washer
• Slotted drive accepts standard flat-blade screwdrivers and bits
• Grade 2 steel with zinc plating for general-purpose corrosion resistance
• Conforms to ASME B18.6.3 for dimensional consistency
• Sold in a box of 50 for job-site and shop use

Compatibility

Designed as a general-purpose inch-series machine screw compatible with any 3/8-16 tapped hole, coupling nut, or hex nut in standard assemblies requiring a truss head profile without a washer.

Installation Notes

Install using a flat-blade screwdriver or slotted power bit sized to the head slot. Ensure the mating tapped hole or nut is clean and free of debris before driving. De-energize any electrical equipment fully before fastening near live components, following applicable NEC requirements. Do not exceed the torque capacity of Grade 2 steel; use a torque-limiting driver when the assembly specification requires controlled clamp load.
