Value Collection MSPX10100-025BX M10x1.5 Pan Head Screw

Product Description

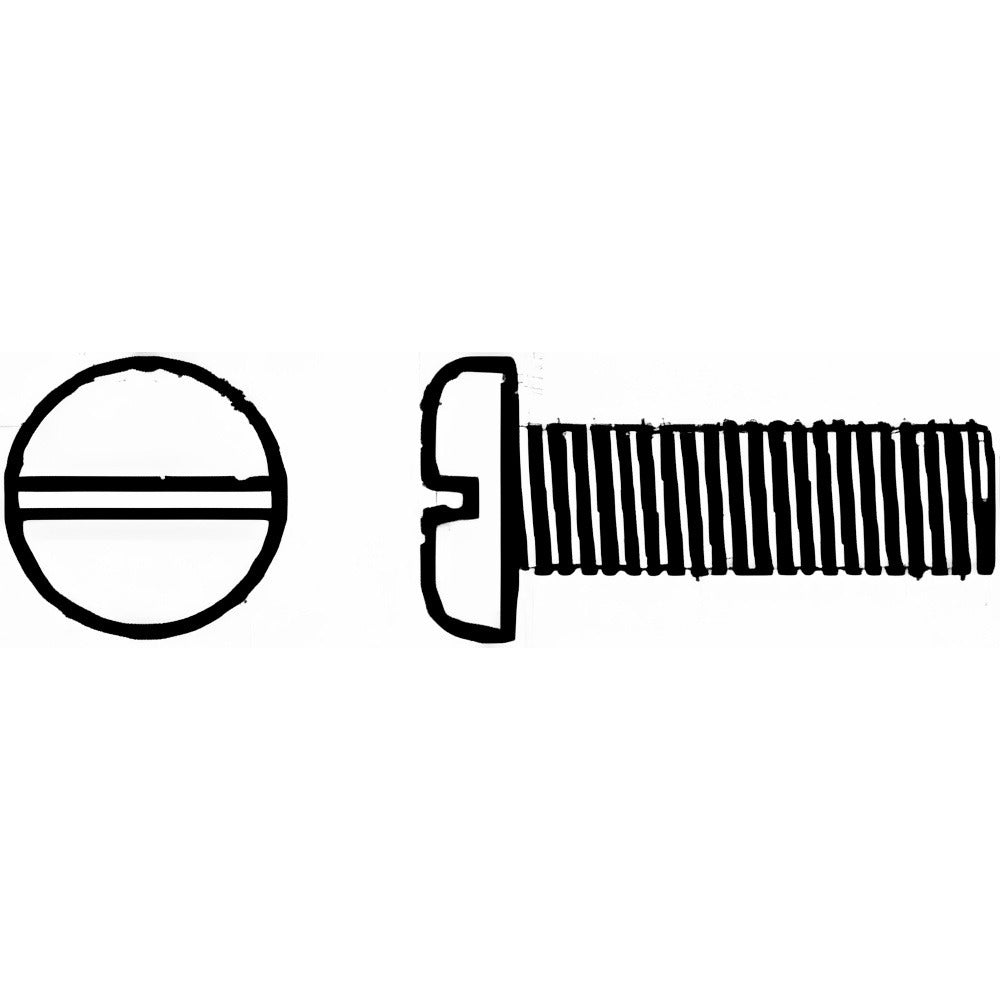

The VALUE COLLECTION MSPX10100-025BX is a metric pan head machine screw with a slotted drive, manufactured from 18-8 stainless steel (A2 grade) to DIN 85 standards. It features an M10x1.5 thread size and a 100 mm length measured under the head. The bright, uncoated finish retains the natural stainless surface without additional plating or treatment. This screw is suited for general mechanical assembly work where corrosion resistance and a low-profile pan head seating are required. Installation is performed without a washer, with length measured from under the head to the tip.

This DIN 85 pan head screw is used in a range of industrial, mechanical, and light structural assembly applications where metric fasteners are specified. The M10 coarse thread pitch of 1.5 mm makes it compatible with standard metric tapped holes and nuts across machinery, enclosures, and equipment frames. The slotted drive is accessible with standard flat-blade screwdrivers or bits. The 18-8 A2 stainless steel composition provides good resistance to rust and mild corrosion in both indoor and outdoor environments, making it a common choice for equipment exposed to moisture or washdown conditions.

Key Features

• M10x1.5 metric coarse thread for use with standard metric tapped holes
• 100 mm length under head per DIN 85 fastener standard
• Pan head profile provides a wide, low-profile bearing surface without a washer
• Slotted drive compatible with standard flat-blade tools
• 18-8 stainless steel at A2 grade for corrosion resistance in wet or outdoor service
• Bright, uncoated finish — no plating that can flake or contaminate the joint

Compatibility

Designed as a DIN 85 standard pan head machine screw for use in metric-threaded M10x1.5 applications across general industrial, mechanical, and equipment assembly.

Installation Notes

This fastener is installed by machinists, millwrights, electricians, and general mechanical trades working with metric hardware. Confirm the receiving thread is tapped to M10x1.5 before installation to avoid cross-threading. Apply appropriate torque using a calibrated torque tool per the assembly specification for the application — do not over-torque stainless fasteners, as galling can occur. In corrosive environments, consider an anti-seize compound compatible with stainless steel to ease future removal.
