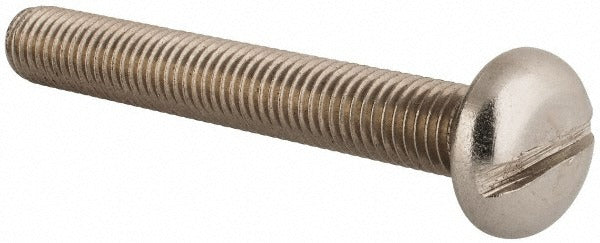

Value Collection MSPX10075-025BX M10x1.5 Pan Head Screw

Product Description

The VALUE COLLECTION MSPX10075-025BX is a metric pan head machine screw with a slotted drive, manufactured from 18-8 stainless steel to DIN 85 standards. The M10x1.5 thread and 75 mm length under head make it suitable for mid-range clamping applications where corrosion resistance is a priority. The bright, uncoated finish preserves the natural stainless surface and is appropriate where added coatings could interfere with fit or appearance. This fastener ships in a minimum order quantity of 5 pieces and is sized for use in general mechanical assemblies, equipment frames, and structural connections requiring metric hardware.

This screw is used in light to medium-duty industrial, commercial, and mechanical assembly applications. The pan head profile provides a low-profile bearing surface with a broad underhead contact area, making it well suited for through-bolted connections in sheet metal, fabricated enclosures, and machinery components. Trades that commonly use this fastener include HVAC equipment assemblers, industrial maintenance technicians, and sheet metal fabricators working with metric-threaded components. The slotted drive is compatible with standard flat-blade screwdrivers and manual drive tools.

Key Features

• M10x1.5 thread size for metric assembly applications
• 75 mm length under head provides adequate thread engagement for mid-depth connections
• Pan head geometry offers a wide bearing surface with low profile
• 18-8 stainless steel construction with A2 material grade for corrosion resistance
• Bright uncoated finish maintains dimensional accuracy without coating buildup
• Conforms to DIN 85 fastener standard

Compatibility

Designed as a standard metric machine screw for use in any application requiring an M10x1.5 pan head slotted fastener per DIN 85. Compatible with standard M10 metric nuts, threaded inserts, and tapped holes machined to M10x1.5 pitch.

Installation Notes

Install using a flat-blade screwdriver or slotted bit driver sized to match the screw head recess to avoid cam-out and head damage. Verify that mating threads are clean and free of debris before driving. Apply appropriate thread lubricant or anti-seize compound when fastening dissimilar metals to prevent galling of the stainless threads. Torque to values appropriate for M10 stainless fasteners per applicable assembly specifications.
