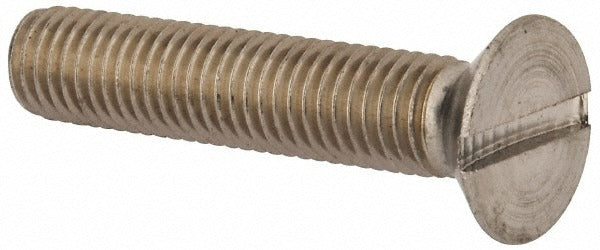

Value Collection MSFXX12060-025BX M12x1.75 Flat Head Screw

Product Description

The VALUE COLLECTION MSFXX12060-025BX is a metric flat head slotted machine screw manufactured from Grade 316 (A4) stainless steel with a bright, uncoated finish. Conforming to DIN 963, this fastener features an M12x1.75 thread size and an overall length of 60 millimeters. The countersunk flat head profile seats flush with the mating surface when installed in a properly chamfered or countersunk hole. Grade 316 stainless steel provides elevated corrosion resistance compared to 304-series alloys, making this screw well-suited for demanding environments. This fastener is installed by maintenance technicians, millwrights, pipefitters, and mechanical contractors working on industrial, marine, or process equipment assemblies.

This machine screw is used in applications requiring a flush fastener profile in metal, plastic, or composite assemblies. The DIN 963 standard ensures consistent head geometry and thread form for use in equipment manufactured or specified to metric European standards. Typical install scenarios include panel mounting, equipment enclosures, pump and valve assemblies, and structural connections in corrosive or wet environments where 316 stainless steel is specified by design or code. The slotted drive is compatible with standard flat-blade screwdrivers and slot drive bits.

Key Features

• Grade 316 (A4) stainless steel construction for superior corrosion resistance in marine and chemical environments
• DIN 963 compliant flat head geometry for flush countersunk installations
• M12x1.75 thread form — standard metric coarse pitch for wide tool and hardware compatibility
• 60 millimeter overall length with no washer — length measured as overall length per specification
• Bright, uncoated finish — no plating to delaminate or react with stainless base material
• Slotted drive accepts standard flat-blade hand tools and power driver bits

Compatibility

Designed as an OEM-style metric machine screw replacement conforming to DIN 963 for use wherever an M12x1.75 flat head slotted fastener in Grade 316 stainless steel is specified.

Installation Notes

Installation should be performed by qualified mechanical or maintenance trades familiar with metric fastener specifications. Ensure the mating hole is properly countersunk to the DIN 963 head angle before driving to avoid stress concentrations at the head. Do not exceed the torque capacity of the slotted drive recess — use a properly fitted flat-blade bit to prevent cam-out and head damage. When installing stainless steel fasteners into stainless threads, apply an anti-seize compound to reduce the risk of galling.
