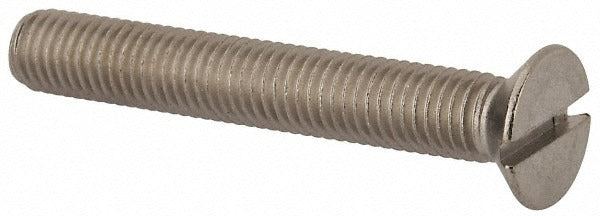

Value Collection MSFXX10070-025BX M10x1.5 Flat Head Screw

Product Description

The VALUE COLLECTION MSFXX10070-025BX is a metric flat head slotted machine screw manufactured from Grade 316 stainless steel with a bright, uncoated finish. This fastener conforms to DIN 963, the standard governing countersunk flat head slotted screws in metric applications. The M10x1.5 thread size and 70 mm overall length make it suited for medium-load assemblies requiring a flush-mount head profile. Grade 316 stainless steel provides elevated corrosion resistance compared to Grade 304, making this screw appropriate for marine, chemical processing, and outdoor structural installations. Licensed tradespeople and industrial maintenance technicians are the primary installers.

This screw is used in metric fastening applications where a countersunk, flush-surface finish is required. Typical scenarios include panel mounting, equipment enclosures, marine hardware, and food-processing or pharmaceutical equipment where Grade 316 stainless is specified for its molybdenum-enhanced corrosion resistance. The DIN 963 standard is widely referenced in European and metric-spec industrial and OEM assembly work. No washer is included or required by the fastener design. This part is sold in a minimum order quantity of 5 pieces.

Key Features

• Grade 316 stainless steel with molybdenum content for superior corrosion resistance in harsh and marine environments
• DIN 963 compliant flat head geometry delivers a flush, countersunk profile after installation
• M10x1.5 thread pitch provides strong engagement in standard metric tapped holes
• 70 mm overall length suits medium-depth through-hole and tapped assemblies
• Bright, uncoated finish maintains dimensional accuracy and is compatible with passivation treatments
• Slotted drive accepts standard flat-blade screwdrivers and power driver bits

Compatibility

Designed for use in any metric assembly specifying an M10x1.5 DIN 963 flat head slotted fastener in Grade 316 stainless steel. Suitable for countersunk holes dimensioned to DIN 963 head geometry.

Installation Notes

Installation requires a countersunk hole sized to DIN 963 specifications to achieve proper flush seating of the flat head. Use a calibrated torque driver appropriate for M10 fasteners to avoid overloading the slotted drive recess. When installing in stainless-to-stainless assemblies, apply an anti-galling compound to the threads to prevent seizing during torquing. Power down or de-energize any associated equipment before fastener replacement in electrical enclosures or live panels.
