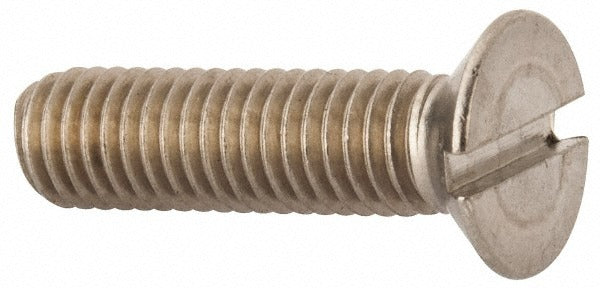

Value Collection MSFXX08030-050BX M8x1.25 Flat Head Screw

Product Description

The VALUE COLLECTION MSFXX08030-050BX is a metric machine screw with a flat head and slotted drive, manufactured from Grade 316 stainless steel with a bright, uncoated finish. It carries an M8x1.25 thread and an overall length of 30 millimeters. Grade 316 stainless steel provides elevated corrosion resistance compared to Grade 304, making it suitable for environments exposed to moisture, chemicals, or salt. This fastener conforms to DIN 963 and is intended for installation by maintenance technicians, millwrights, and mechanical contractors working with metric-standard assemblies.

This screw is used in general mechanical, industrial, and structural applications where a flush or countersunk fastener profile is required. The flat head seats into a countersunk hole, leaving the mating surface flush after installation. Common use cases include equipment panels, enclosures, frames, and assemblies where corrosion resistance is a priority. The metric M8x1.25 thread pitch is standard across a wide range of machine components and fabricated assemblies in both commercial and industrial settings.

Key Features

• Grade 316 stainless steel with A4 designation for superior corrosion resistance
• Flat head profile seats flush in countersunk holes per DIN 963 standard
• Slotted drive compatible with standard flat-blade screwdrivers
• M8x1.25 metric thread with 30 millimeter overall length
• Bright, uncoated finish — no added coating to affect dimensional tolerances
• Conforms to DIN 963 fastener standard for consistent dimensional interchangeability

Compatibility

Designed as a DIN 963-compliant metric machine screw for use in M8-threaded countersunk applications across industrial, mechanical, and structural assemblies requiring Grade 316 stainless steel fasteners.

Installation Notes

Installation is performed using a flat-blade screwdriver or slotted bit sized for an M8 fastener head. Ensure the receiving hole is properly countersunk to the correct angle before driving the screw to achieve a flush seating surface. Apply appropriate thread engagement depth per the assembly specification — do not over-torque, as stainless steel fasteners are susceptible to galling. For structural or code-governed applications, consult the applicable mechanical or structural standard for torque and installation requirements.
