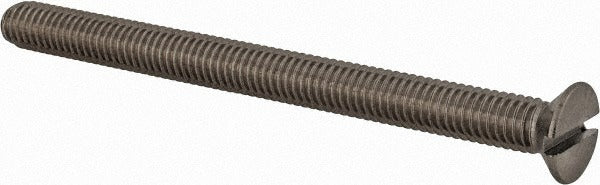

Value Collection MSFX06075-025BX M6x1 Flat Head Slotted Screw Din 963

Product Description

The VALUE COLLECTION MSFX06075-025BX is a metric flat head slotted machine screw manufactured from 18-8 stainless steel to DIN 963 standards. The countersunk flat head sits flush with or below the mating surface when installed in a properly chamfered hole, making it a common choice wherever a smooth, low-profile finish is required. The M6x1 thread designation indicates a 6 mm nominal diameter with a 1 mm thread pitch. Overall length is 75 mm, measured from the top of the head. The bright, uncoated finish reflects the natural stainless surface with no additional plating or coating applied. This box contains 25 screws.

These screws are used across a wide range of light industrial, mechanical, and trade assembly applications where metric fastening and corrosion resistance are both required. Typical installation scenarios include panel mounting, equipment enclosures, pump and valve assemblies, and general fabrication work in environments where moisture exposure makes stainless steel a practical material choice. The DIN 963 standard ensures consistent head geometry and dimensional compliance for applications with defined countersink specifications.

Key Features

• M6x1 metric thread for compatibility with standard metric tapped holes and nuts
• 75 mm overall length suits deeper through-fastening and countersunk panel applications
• 18-8 stainless steel (A2 grade) provides corrosion resistance in wet or humid environments
• Flat countersunk head profiles flush to the workpiece surface per DIN 963 geometry
• Slotted drive accepts standard flat-blade screwdrivers for installation and removal
• Bright, uncoated finish maintains base metal properties without added coating variables

Compatibility

Designed for use in metric-tapped holes with M6x1 thread form, conforming to DIN 963 countersunk head geometry for flat head machine screw applications.

Installation Notes

Installation should be performed by a qualified mechanic or tradesperson using a correctly sized flat-blade screwdriver or slotted bit to avoid cam-out and head damage. The mating hole must be chamfered to the appropriate DIN 963 countersink angle to achieve a flush seating surface. Always verify thread engagement depth and avoid over-torquing stainless fasteners, which are susceptible to galling. Ensure the tapped hole or nut is also stainless or a compatible material to prevent galvanic corrosion in exposed environments.
