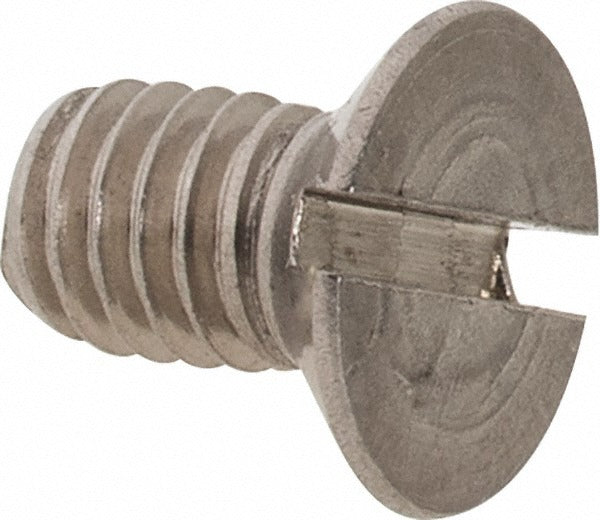

Value Collection MSFX03506-050BX M3.5x0.6 Flat Head Slotted Screw

Product Description

The VALUE COLLECTION MSFX03506-050BX is a metric machine screw with a flat head and slotted drive, manufactured from 18-8 stainless steel (A2 grade) to the DIN 963 standard. The flat head profile sits flush with or below the mating surface when fully driven, making it well suited for applications where a low-profile finish is required. The M3.5x0.6 thread and 6 mm overall length target light-to-medium fastening tasks in metal, plastic, or composite assemblies. The bright, uncoated finish maintains the natural corrosion resistance of the 18-8 alloy. This box contains 50 screws, which is also the minimum order quantity for this part.

These flat head slotted machine screws are used across a wide range of industrial, commercial, and mechanical assembly applications. Common installations include panel and enclosure work, instrumentation, small motor housings, and general equipment fabrication where a flush or countersunk fastener is specified. The metric M3.5x0.6 thread series is standard in European and Asian equipment designs as well as machinery that conforms to DIN fastener specifications. Electricians, HVAC technicians, and mechanical assemblers working on metric equipment will find this size appropriate for small-gauge threaded bosses and tapped holes.

Key Features

• DIN 963 standard flat head slotted profile for flush or countersunk installations
• M3.5x0.6 metric thread with 6 mm overall length and 6 mm length under head
• 18-8 stainless steel (A2 grade) for corrosion resistance in general-purpose environments
• Bright, uncoated finish — no added coating to affect thread tolerance or appearance
• Sold in a box of 50 screws, packaged as a single unit
• No washer — designed for direct bearing against the mating surface

Compatibility

Designed as an OEM-style metric machine screw for use in any application requiring a DIN 963 flat head slotted fastener with M3.5x0.6 thread and 6 mm length.

Installation Notes

A properly sized flat-blade screwdriver matched to the slotted head width is required for installation. Countersink the mating material to the correct DIN 963 angle before driving to achieve a true flush finish. Verify the tapped hole thread specification matches M3.5x0.6 before installation to avoid cross-threading. Do not over-torque stainless steel fasteners, as galling can occur; apply an appropriate anti-seize compound if the mating material is also stainless steel.
