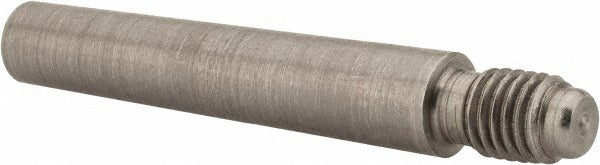

Value Collection MSC67706200X Threaded Taper Pin Size 5

Product Description

The VALUE COLLECTION MSC67706200X is a Size 5 threaded taper pin machined from 303 grade 18-8 stainless steel with a passivated finish. The pin measures 1.5 inches in length with a large-end diameter of 0.287 inches and a maximum diameter tolerance of 0.0013 inches. The 1/4-28 threaded end allows for controlled extraction using a standard nut, making removal straightforward in maintenance applications. Licensed machinists, millwrights, and maintenance technicians install taper pins to align and lock mating components such as hubs, collars, and shafts in mechanical assemblies.

This taper pin is suited for light-to-medium duty mechanical assemblies in industrial, aerospace, and general manufacturing environments where corrosion resistance is required. The passivated stainless steel construction resists oxidation and chemical exposure, making it appropriate for food-processing equipment, marine hardware, and similar service conditions. The threaded end aids extraction in assemblies that see regular disassembly cycles. Conformance to AN386 standards makes this pin appropriate for applications requiring documented dimensional compliance.

Key Features

• Size 5 taper pin with 0.287-inch large-end diameter
• 1/4-28 threaded end for controlled extraction
• 303 grade 18-8 stainless steel construction for corrosion resistance
• Passivated finish enhances surface corrosion protection
• Maximum diameter tolerance of 0.0013 inches for precision fit
• Conforms to AN386 standards

Compatibility

Designed as an OEM-style replacement or direct-fit taper pin for mechanical assemblies requiring a Size 5 threaded taper pin conforming to AN386 dimensional standards.

Installation Notes

Taper pins are typically installed and removed by machinists or maintenance technicians using a pin punch, hammer, or drive press. Always de-energize and lock out the equipment before servicing any shaft or hub assembly. The threaded end requires a mating nut for extraction — do not attempt to drive the pin from the threaded end with a punch. Confirm hole taper alignment before driving the pin to seat to avoid galling the stainless steel surface.
