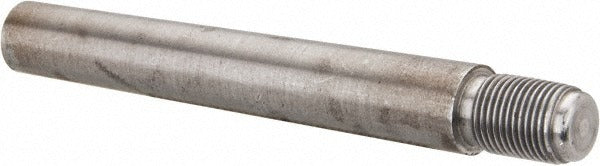

Value Collection MSC67705848X Threaded Taper Pin Size 10

Product Description

The VALUE COLLECTION MSC67705848X is a Size 10 externally threaded taper pin machined from C-12L14 free-machining steel with no surface coating. The large end diameter measures 0.704 inches with a maximum diameter tolerance of 0.0013 inches, and the pin body length is 4.5 inches. The threaded end is sized 5/8-18 UNF. Taper pins of this type are used to locate and secure hubs, collars, and mechanical components on shafts, providing a reliable, removable connection that resists axial and rotational movement. This pin meets AN386 standards and is suited for precision mechanical assembly work in industrial and maintenance applications.

This threaded taper pin is intended for use in mechanical assemblies where a positive, removable alignment or locking connection is required between a shaft and a mating component. The threaded end allows the pin to be drawn into the tapered hole for a tight fit and facilitates controlled removal with a nut. It is commonly installed in manufacturing equipment, power transmission assemblies, and general machinery by maintenance technicians and machine assemblers working to standard engineering tolerances.

Key Features

• Size 10 taper pin with 0.704 inch large end diameter
• Pin length of 4.5 inches for medium-depth shaft and hub assemblies
• 5/8-18 UNF threaded end for controlled installation and removal
• C-12L14 free-machining steel construction for consistent dimensional accuracy
• Maximum diameter tolerance of 0.0013 inches for precise fitment
• Meets AN386 standard for threaded taper pins

Compatibility

Designed as an OEM-style replacement or direct-fit component for mechanical assemblies requiring a Size 10 threaded taper pin conforming to AN386 standards.

Installation Notes

Installation is typically performed by maintenance technicians or machine assemblers using a reamed tapered hole sized to match the pin taper. De-energize and lock out all equipment before servicing any shaft or hub connection. The pin should be drawn in with a nut on the threaded end rather than driven, to avoid deforming the threads. Always verify hole taper and diameter tolerance before installation to ensure a proper interference fit.
