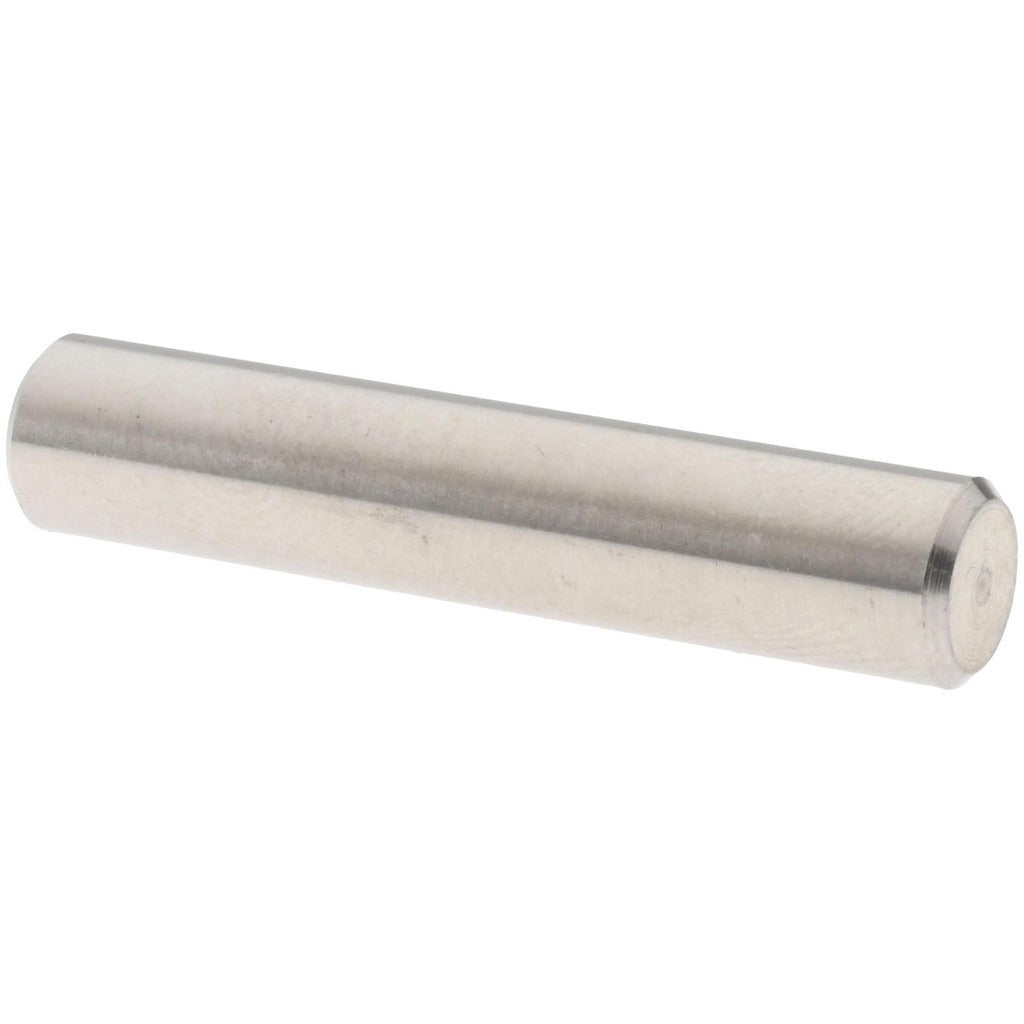

Value Collection MSC-67601047 Dowel Pin 1/4x1-1/4 Ss 18-8

Product Description

The VALUE COLLECTION MSC-67601047 is a standard pull out dowel pin used to align and locate mating parts in precision assemblies. Machined from Grade 18-8 stainless steel with a bright, uncoated finish, it provides reliable corrosion resistance in general industrial and mechanical applications. The pin measures 0.25 inches in diameter with a length of 1.25 inches and holds a diameter tolerance of 0.0002 inches, making it suitable for close-tolerance alignment work. Machinists, toolmakers, and maintenance technicians commonly install these pins in fixtures, jigs, dies, and machine housings where repeatable part location is required.

This dowel pin fits residential and commercial industrial assembly and maintenance applications wherever standard pull out style alignment pins are specified. The pull out style head allows the pin to be extracted with a standard puller tool without damaging the mating bores. Typical installation scenarios include machine tool fixtures, die sets, and precision mechanical assemblies. The stainless steel construction makes this pin appropriate for environments with mild moisture exposure or where carbon steel corrosion is a concern.

Key Features

• Grade 18-8 stainless steel construction for corrosion resistance in general service environments
• Bright, uncoated finish for consistent surface quality and dimensional accuracy
• Diameter tolerance of 0.0002 inches for close-tolerance alignment applications
• Standard pull out style head allows removal without bore damage using a standard puller
• 0.25-inch diameter by 1.25-inch length suits common fixture and jig alignment requirements

Compatibility

Designed as an OEM-style replacement or standard-stock pull out dowel pin for use in precision fixtures, jigs, dies, and machine assemblies specifying a 1/4-inch diameter by 1-1/4-inch length stainless steel dowel pin.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using an arbor press or mallet with a brass drift to seat the pin without galling the bore. Always ensure the receiving bore is clean, deburred, and within the specified tolerance before pressing the pin. Power down and lock out any machine before servicing alignment pins on live equipment. Do not force an oversized pin into an undersized bore, as this can distort the workpiece or fracture the pin.
