Value Collection MSC-67600726 Pull Out Dowel Pin 3/16x1.5in Ss

Product Description

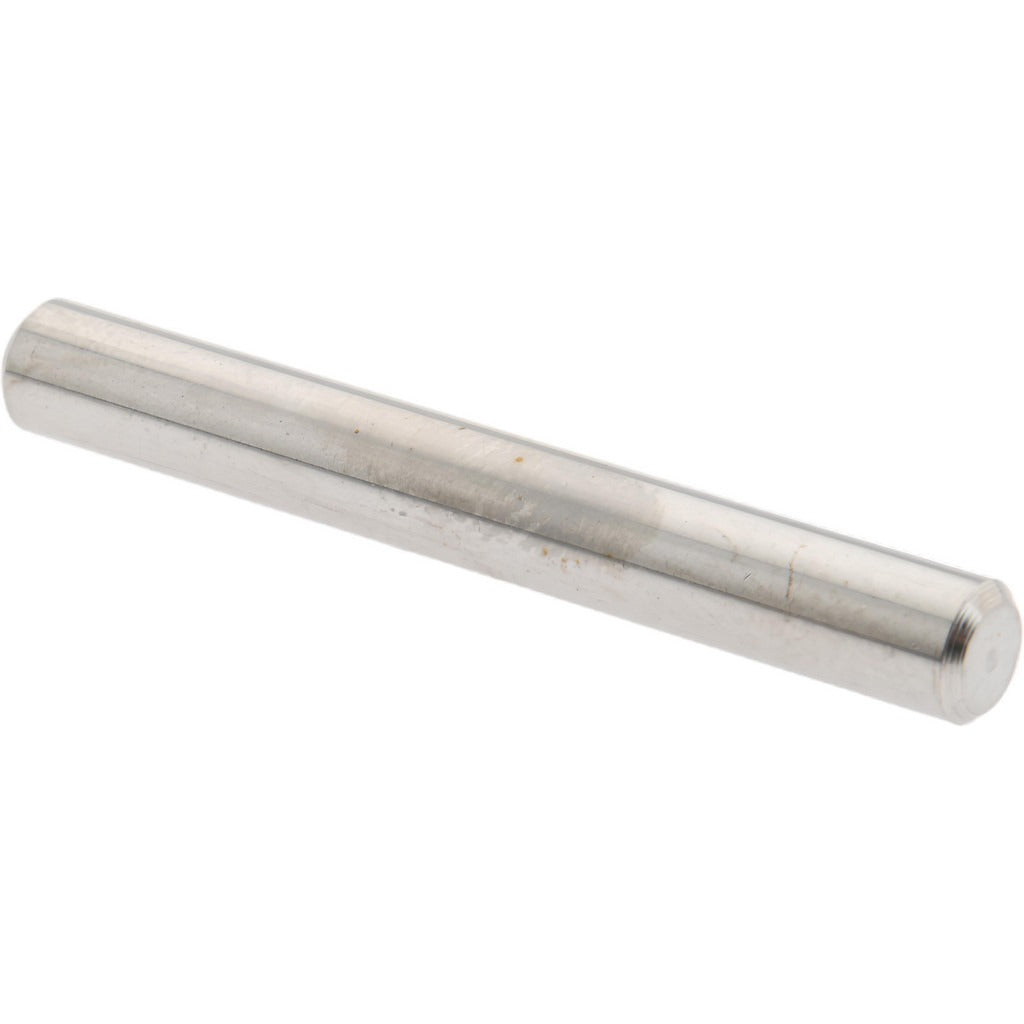

The VALUE COLLECTION MSC-67600726 is a standard pull out dowel pin machined from 18-8 stainless steel with a bright, uncoated finish. At 3/16 inch in diameter and 1.5 inches in overall length, it is designed for precision alignment and locating applications in mechanical assemblies. The 18-8 stainless steel construction provides solid corrosion resistance for use in moderate-exposure environments. A diameter tolerance of 0.0002 inches ensures consistent, repeatable fitment in close-tolerance bored holes. This pin is suited for machinists, maintenance technicians, and tool-and-die professionals working in production or repair settings.

Pull out dowel pins are used wherever components must be accurately located and later disassembled without damage. The pull out design incorporates a threaded internal feature that allows the pin to be extracted using a standard puller or threaded rod, making it practical in blind-hole applications where a conventional pin cannot be driven out from the reverse side. Typical applications include fixture plates, machine bases, die sets, and precision jigs across general manufacturing and maintenance environments.

Key Features

• Standard pull out style for blind-hole and non-through applications
• 18-8 stainless steel construction for corrosion resistance in moderate environments
• Diameter tolerance of 0.0002 inches for precise locating fitment
• Bright, uncoated finish with no added coating to affect dimensional accuracy
• 3/16 inch diameter by 1.5 inch length fits common alignment applications

Compatibility

Designed as a standard-style pull out dowel pin for use in precision-bored 3/16 inch diameter holes in mechanical fixtures, jigs, dies, and machine components requiring repeatable alignment.

Installation Notes

Installation and removal should be performed by a machinist or qualified maintenance technician. Press the pin into a properly reamed or bored hole using a controlled press or mallet with a brass drift to avoid surface damage. Before installation, verify hole diameter and finish to match pin tolerance. To remove, thread a compatible puller rod into the internal feature and extract axially without side-loading the pin or bore.
