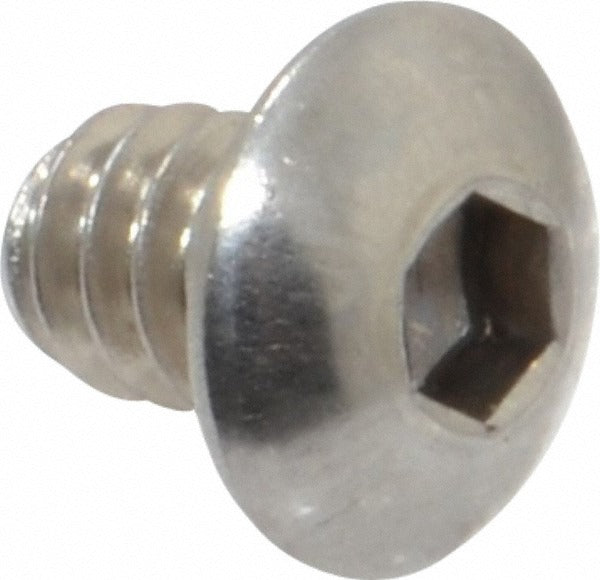

Value Collection MSC-67562405 Button Socket Cap Screw 10-24

Product Description

The VALUE COLLECTION MSC-67562405 is a button socket cap screw designed for applications requiring a low-profile fastener with high corrosion resistance. The screw is fully threaded with a 10-24 UNC thread size and measures 1/4 inch in length under the head. It is driven by a 1/8 inch hex socket key and is manufactured from 18-8 stainless steel with a bright, uncoated finish. This fastener conforms to ANSI/ASME B18.3 and ASTM F837 standards. It is suited for machine assembly, equipment maintenance, and fabrication work performed by millwrights, maintenance technicians, and mechanical contractors.

This button socket cap screw is used in light to medium-duty mechanical assemblies where clearance is limited and a rounded, low-profile head is required. The UNC thread form and 3A thread fit class make it compatible with standard tapped holes in a wide range of metal components. It is commonly installed in enclosures, brackets, panels, and precision equipment frames across industrial and commercial settings.

Key Features

• 10-24 UNC fully threaded for compatibility with standard tapped holes
• 1/4 inch length under head suits shallow-clearance fastening applications
• 18-8 stainless steel construction provides corrosion resistance in wet or exposed environments
• Button head profile reduces snag risk and keeps a low installed height
• 1/8 inch hex socket drive for precise torque application with an Allen key or hex bit
• Meets ANSI/ASME B18.3 and ASTM F837 fastener standards

Compatibility

Designed as an OEM-style replacement or standard-fit fastener for any assembly using a 10-24 UNC tapped hole requiring a button head socket cap screw per ANSI/ASME B18.3.

Installation Notes

Installation is performed with a 1/8 inch hex key or matching hex socket bit driver. Verify the receiving tapped hole is clean and free of debris before driving the screw. Do not exceed the rated engagement depth for the base material, particularly in aluminum or plastic. Stainless steel fasteners are susceptible to galling — apply an appropriate anti-seize compound when threading into stainless or other galling-prone materials.
