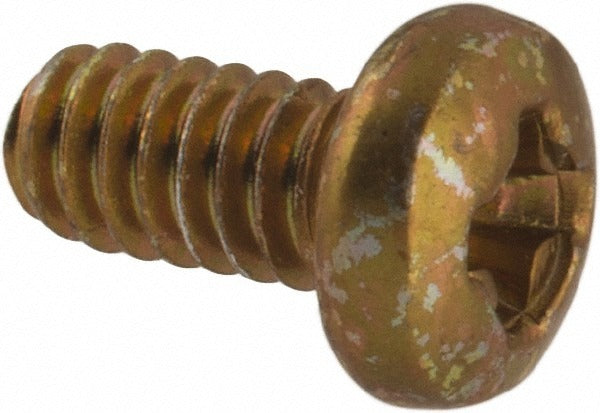

Value Collection MS35206-202 Machine Screw 2-56 Pan Head

Product Description

The VALUE COLLECTION MS35206-202 is a 2-56 threaded pan head machine screw manufactured to military standard MS35206. It measures 3/16 inches in length under the head and is driven by a Phillips bit. Constructed from steel with a yellow cadmium finish, it meets Grade 3 material requirements, providing corrosion resistance suitable for aerospace, defense, and general industrial fastening applications. This screw is installed by maintenance technicians, assemblers, and field service professionals working on precision equipment, enclosures, and control panels requiring a standardized, corrosion-resistant threaded fastener.

This screw is suited for use in light-duty mechanical assemblies, electronic enclosures, instrumentation panels, and equipment housings where a 2-56 thread pitch is specified. The pan head profile provides a low-profile bearing surface without a washer. Applications span aerospace ground support equipment, military hardware, and commercial industrial assemblies that reference MS35206 fastener specifications. Sold individually as a single package with a minimum order quantity of 100 pieces per order.

Key Features

• 2-56 thread size for use in fine-thread tapped holes common to instrument and enclosure assemblies
• Pan head profile with Phillips drive for fast installation with standard bits
• Steel construction with yellow cadmium finish for corrosion resistance
• Meets military fastener standard MS35206
• Grade 3 material rating
• No washer required — washer-free design under head

Compatibility

Designed as a direct replacement or specification-compliant substitute for applications calling out MS35206 standard fasteners in 2-56 thread size with a pan head Phillips drive configuration.

Installation Notes

Install using a Phillips screwdriver or bit driver sized for a No. 2-56 fastener. Ensure the mating tapped hole is clean and free of debris before threading. Do not overtighten, as fine-thread 2-56 fasteners in thin-wall or soft-material tapped holes are susceptible to thread stripping. Follow applicable assembly specifications or torque tables for 2-56 steel fasteners when a controlled torque value is required.
