Value Collection MS24693-S77 Machine Screw 10-24

Product Description

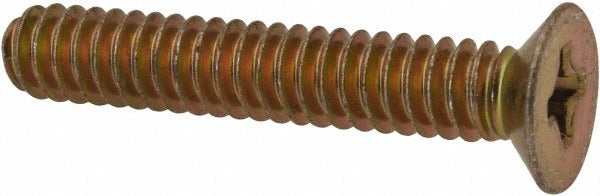

The VALUE COLLECTION MS24693-S77 is a 10-24 threaded flat head machine screw built to MS24693 military and aerospace fastener standards. The Phillips drive head sits flush when fully seated, making it well suited for assemblies where a smooth surface profile is required. Constructed from steel with a yellow cadmium finish for corrosion resistance, this screw measures 1-1/8 inches in overall length and carries a Grade 3 material designation. It weighs approximately 0.07 pounds per unit. Maintenance technicians, aerospace assemblers, and general mechanical tradespeople will find this fastener applicable across a wide range of structural and equipment-mounting tasks.

This screw is used in applications that call for MS24693-standard flat head fasteners, including panel mounting, electrical enclosure assembly, equipment brackets, and general sheet-metal or structural work. The flush-seating flat head design is particularly common in aerospace, defense, and industrial maintenance environments where protruding fastener heads are not acceptable. The 10-24 thread size is a standard unified coarse thread that accommodates a wide variety of tapped holes and threaded inserts found in commercial and military equipment.

Key Features

• 10-24 unified coarse thread for broad compatibility with standard tapped holes and inserts
• Flat head Phillips drive allows flush seating in countersunk holes
• Steel construction with yellow cadmium finish for corrosion protection
• Meets MS24693 fastener standard for military and aerospace applications
• Grade 3 material designation
• 1-1/8 inch overall length with no washer style

Compatibility

Designed as a direct-replacement MS24693-standard machine screw for use in any assembly requiring a 10-24 flat head Phillips fastener with a 1-1/8 inch overall length and yellow cadmium finish.

Installation Notes

Install using a Phillips-head screwdriver or bit sized for a No. 10 fastener. Ensure the mating hole is properly countersunk to accept a flat head profile before driving the screw. De-energize any electrical panel or equipment before accessing fastened covers or components. Do not overtighten, as cadmium-plated fasteners in soft or tapped materials can strip threads if excessive torque is applied without a torque specification on hand.
