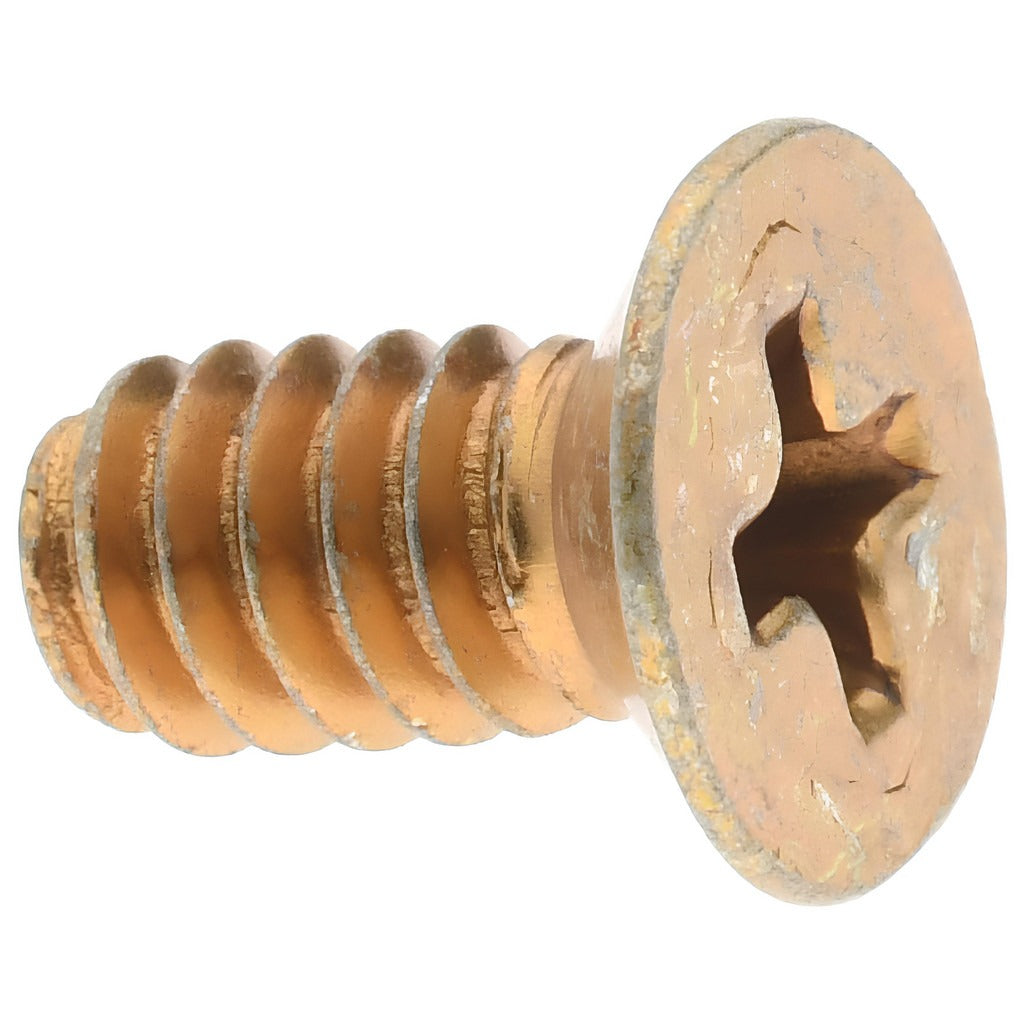

Value Collection MS24693-S70 Flat Head Machine Screw

Product Description

The VALUE COLLECTION MS24693-S70 is a 10-24 thread, 3/8-inch overall length flat head machine screw manufactured from steel with a yellow cadmium finish. Conforming to the MS24693 fastener standard, it is rated Material Grade 3 and features a Phillips drive for installation with standard hand or power tools. The flat head profile is designed to sit flush with or countersunk into the mating surface, making it well suited for assemblies where a low-profile fastener is required. This screw is sold individually but requires a minimum order quantity of 100 pieces per purchase, making it appropriate for maintenance stock and production-line restocking.

This screw is used across a wide range of industrial, mechanical, and trade applications where a standardized mil-spec machine screw is specified. The MS24693 standard designation makes it a common fastener in aerospace-adjacent, military, and precision mechanical assemblies. It is also used in general HVAC panel assembly, electrical enclosures, and equipment fabrication where a countersunk Phillips drive fastener is called out. Licensed tradespeople, maintenance technicians, and fabricators working with steel or aluminum panels will find this fastener applicable to standard 10-24 tapped holes.

Key Features

• 10-24 unified coarse thread compatible with standard 10-24 tapped holes and nuts
• 3/8-inch overall length with flush-mount flat head profile for countersunk applications
• Phillips drive accepts standard Phillips No. 2 screwdrivers and power bits
• Steel construction with yellow cadmium finish for corrosion resistance
• Meets MS24693 fastener standard for consistent dimensional and material compliance
• Material Grade 3 designation; no washer included

Compatibility

Designed as an OEM-style replacement or production fastener for any assembly specifying a 10-24 flat head Phillips machine screw per the MS24693 standard in inch measurement.

Installation Notes

Install using a Phillips No. 2 screwdriver or compatible power driver bit. Ensure the mating hole is properly tapped to 10-24 thread specifications and the countersink angle matches the flat head profile before driving the screw. De-energize any electrical panel or equipment before fastening enclosure hardware. Do not overtighten, as cadmium-finished steel screws in aluminum panels are susceptible to thread damage if torqued beyond hand-tight plus a controlled final turn.
