Value Collection MS24693-S38 Flat Head Phillips Machine Screw

Product Description

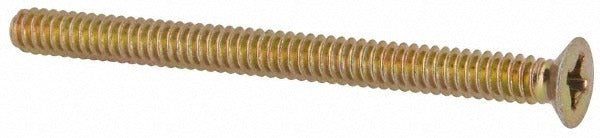

The VALUE COLLECTION MS24693-S38 is a 6-32 flat head Phillips machine screw manufactured to MS24693 fastener standard. It measures 1.75 inches in overall length and is produced from steel with a yellow cadmium finish. The flat head profile sits flush with the mating surface when fully driven, making it well suited for applications where a smooth exterior face is required. Grade 3 construction meets the strength and dimensional requirements of the applicable military standard. Installation requires a standard Phillips screwdriver or bit driver. This screw ships with a minimum order quantity of 100 pieces per lot.

This screw is used across aerospace, defense, electronic enclosure, and general mechanical assembly applications where MS24693-series fasteners are specified. The 6-32 thread size is common in instrument panels, electrical cabinets, and light structural assemblies. The yellow cadmium finish provides corrosion resistance and is recognized in mil-spec environments. Technicians and assemblers working to military or government specifications will find this fastener meets the dimensional and finish requirements called out in MS24693 documentation.

Key Features

• 6-32 unified coarse thread for standard tapped holes in this size range
• 1.75 inches overall length with length under head also measured at 1.75 inches
• Flat head profile allows flush installation in countersunk holes
• Phillips drive type compatible with standard bit drivers and screwdrivers
• Yellow cadmium finish for corrosion resistance in mil-spec applications
• Manufactured to MS24693 fastener standard, Grade 3

Compatibility

Designed as an OEM-style replacement or direct specification fastener for assemblies requiring MS24693-series 6-32 flat head Phillips machine screws in steel with yellow cadmium finish.

Installation Notes

Installation is performed by hand or with a Phillips bit driver sized for a number 6 screw. Ensure the mating hole is tapped to 6-32 specification and that any countersink angle matches the flat head profile before driving. Do not overtighten, as thread stripping can occur in softer base materials. Follow applicable assembly drawings or torque specifications provided by the equipment manufacturer or governing standard.
