Value Collection MS24693-S277 Machine Screw 10-32

Product Description

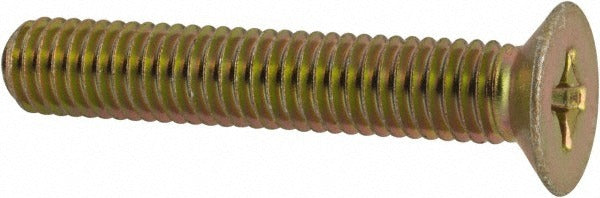

The VALUE COLLECTION MS24693-S277 is a 10-32 x 1.125-inch overall length flat head Phillips drive machine screw manufactured from steel with a yellow cadmium finish. Built to MS24693 fastener standard, this Grade 3 screw delivers reliable clamping force in threaded assemblies where a flush or countersunk installation profile is required. The flat head geometry sits flush with or below the mating surface when installed in a countersunk hole, making it suitable for applications where protrusion is not acceptable. Yellow cadmium plating provides corrosion resistance and is commonly specified in aerospace-adjacent, military, and industrial maintenance environments.

This screw is used in light to medium-duty mechanical assemblies across industrial, commercial, and government maintenance operations. The 10-32 thread designation is a fine-thread Unified National series commonly found in electrical enclosures, control panels, instrument housings, and precision sheet-metal assemblies. It is installed by maintenance technicians, electricians, and mechanical assemblers who require a flush-fastening solution with a standardized military-specification part number. Minimum order quantity is 100 pieces per order.

Key Features

• 10-32 fine thread for precise, secure thread engagement in tapped holes
• Flat head Phillips drive allows flush or countersunk installation
• 1.125-inch overall length matches length under head at 1.125 inches
• Steel construction with yellow cadmium finish for corrosion resistance
• Grade 3 material grade per MS24693 fastener standard
• No washer included; sold individually per package quantity of 1 (minimum order 100 units)

Compatibility

Designed as an OEM-style replacement or direct specification match for applications requiring MS24693-standard flat head Phillips machine screws in 10-32 x 1.125-inch size.

Installation Notes

Installation is performed by qualified maintenance technicians or mechanical assemblers using a Phillips screwdriver or bit of the correct size to avoid cam-out and head damage. The mating component must have a properly sized countersunk or flat-bottomed clearance hole to achieve full seating of the flat head. Always de-energize and lock out electrical panels or equipment before installing fasteners in live assemblies. Cadmium-plated fasteners should be handled in accordance with applicable occupational safety guidelines due to the toxicity of cadmium compounds.
