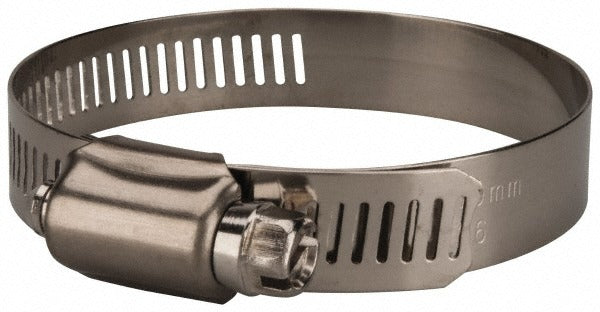

Value Collection MS01D4470 Worm Gear Clamp Sae 36

Product Description

The VALUE COLLECTION MS01D4470 is a worm gear clamp built to SAE 36 specifications, designed for securing hoses, tubing, and flexible connections in plumbing, HVAC, and general trade applications. The clamp features a stainless steel band that is 1/2 inch wide and adjusts to fit diameters ranging from 1-3/4 inches to 2-3/4 inches. The band and housing are constructed from 201-grade stainless steel, providing corrosion resistance in wet or humid environments. A worm drive mechanism allows precise tightening with a standard screwdriver or nut driver. At 0.03 pounds, the clamp is lightweight without sacrificing holding strength for its size class.

This clamp is suited for residential and light commercial installations where a reliable, adjustable hose or tubing connection is required. Common applications include HVAC condensate drain lines, plumbing supply and drain connections, radiator hoses, and flexible duct or pipe fittings. The SAE 36 size designation makes it straightforward to specify and cross-reference against standard clamp sizing charts. It is installed by HVAC technicians, plumbers, and pipefitters as part of routine assembly and repair work.

Key Features

• SAE 36 rated clamp with an adjustment range of 1-3/4 inches to 2-3/4 inches diameter
• 201-grade stainless steel band and housing for corrosion resistance in wet environments
• 1/2 inch wide band distributes clamping force evenly along the hose or fitting
• Worm drive mechanism accepts a standard flat or hex-head driver for precise torque control
• Lightweight at 0.03 pounds, suitable for overhead or confined-space installations

Compatibility

Designed as a standard SAE 36 worm gear clamp for use with hoses, flexible tubing, and pipe fittings measuring between 1-3/4 inches and 2-3/4 inches in outer diameter across plumbing, HVAC, and general mechanical applications.

Installation Notes

Installation is performed by licensed plumbers, HVAC technicians, or qualified mechanical trades. Shut off fluid flow and depressurize the line before removing or installing any clamp. Position the band so the worm drive housing does not bear directly against a fitting bead or seam. Tighten gradually and evenly to avoid distorting soft hose materials, and verify the connection is leak-free before returning the system to service.
