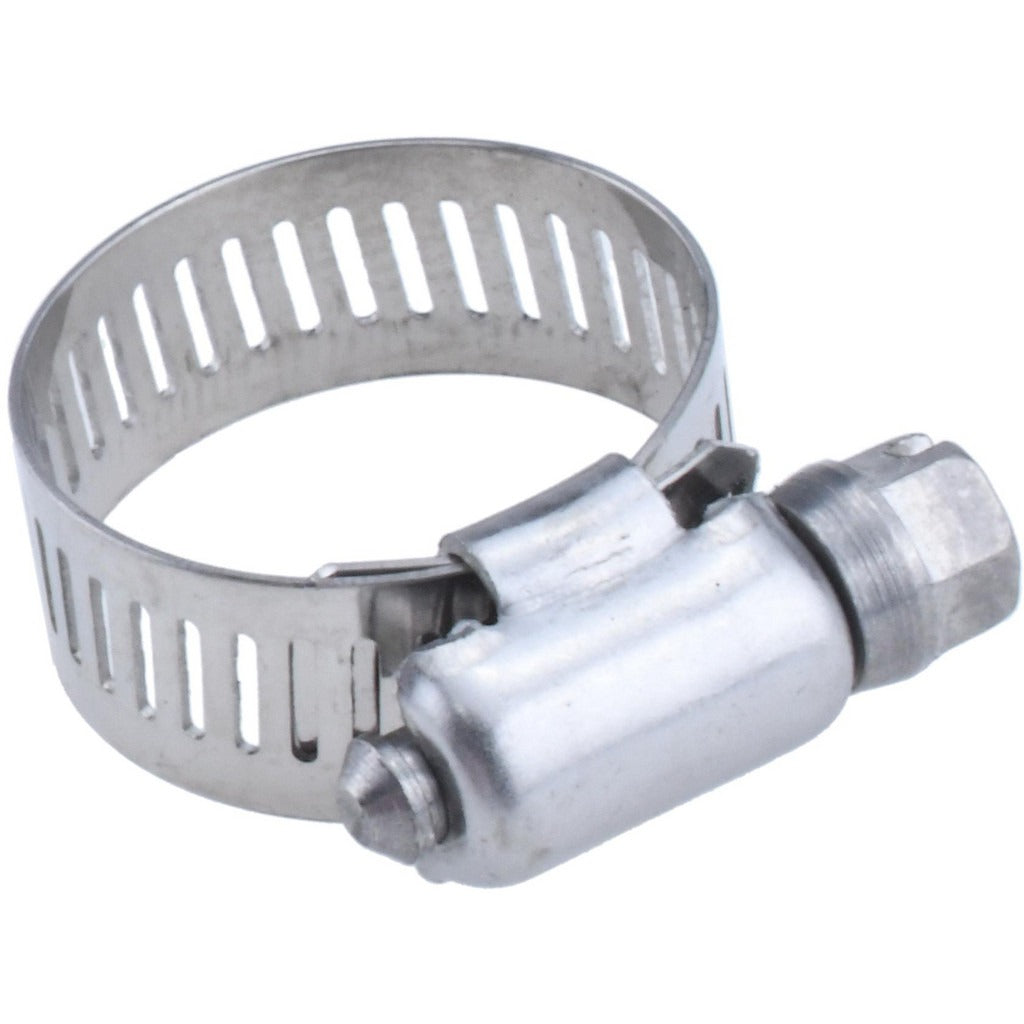

Value Collection MS01D1427 Worm Gear Clamp Sae 10

Product Description

The VALUE COLLECTION MS01D1427 is a worm gear clamp rated SAE Size 10, designed to secure hoses and fittings across a clamping range of 0.5 to 1.0625 inches in diameter. The band is 0.5 inches wide and constructed from 201 grade stainless steel, providing corrosion resistance in wet, chemical, and outdoor service environments. This style of clamp is a standard fastener used throughout plumbing, HVAC, automotive, and general mechanical applications wherever a hose or tubing connection requires a reliable, adjustable seal. A worm drive mechanism allows precise torque adjustment with a common screwdriver or nut driver.

The MS01D1427 worm gear clamp fits hose and tubing connections requiring a clamp diameter between 0.5 and 1.0625 inches, making it suitable for residential and light commercial plumbing lines, HVAC condensate drain connections, coolant hoses, and similar small-bore applications. The SAE 10 designation is a widely recognized size classification that aids in cross-referencing against existing hardware. It is installed by plumbers, HVAC technicians, and general mechanical trades during new installations or service calls.

Key Features

• SAE Size 10 worm gear clamp covering 0.5 to 1.0625 inches clamping diameter
• Band and housing constructed from 201 grade stainless steel for corrosion resistance
• Band width of 0.5 inches provides even clamping load across the hose surface
• Worm drive design allows fine-thread adjustment for precise seating torque
• Lightweight at 0.03 pounds per clamp, minimizing added load on small fittings
• UNSPSC Code 31171712 for procurement and catalog classification

Compatibility

Designed as a standard SAE 10 worm gear clamp suitable for hose and tubing with an outside diameter between 0.5 and 1.0625 inches across plumbing, HVAC, and general mechanical applications.

Installation Notes

Worm gear clamps of this type are installed using a flat-blade screwdriver or a 5/16-inch hex nut driver to drive the worm screw. Position the clamp over the hose before seating it onto the fitting, then slide it to the appropriate location and tighten until snug. Do not overtighten, as excessive torque on small-diameter hoses can cut through the hose wall and cause leaks. Shut off the relevant fluid or pressure source before servicing any connection.
