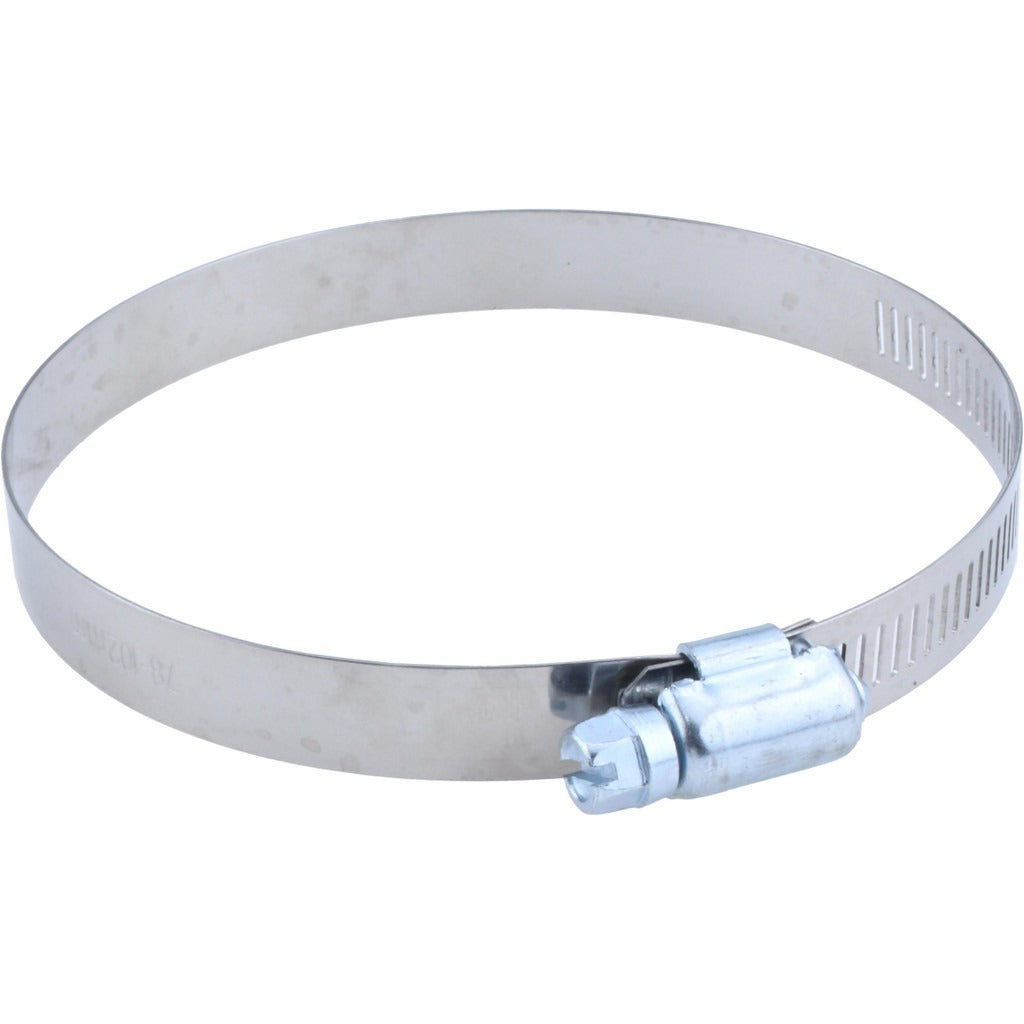

Value Collection MS01B78102B Worm Gear Clamp Sae 56

Product Description

The VALUE COLLECTION MS01B78102B is a worm gear clamp rated SAE Size 56, designed to secure hose and tubing connections across a clamping range of 3.071 inches to 4 inches in diameter. The band is constructed from 201-grade stainless steel and carbon steel, providing corrosion resistance suitable for general-purpose fluid and air line applications. At 0.5 inches wide, the band delivers consistent radial pressure around the hose. This clamp is installed by HVAC technicians, plumbers, and general mechanical trades wherever a reliable, tool-tightened hose connection is required.

This worm gear clamp is suited for residential and light commercial applications including HVAC condensate drain lines, coolant hoses, fresh water supply lines, and air duct connections. The worm drive mechanism allows precise torque adjustment with a standard flat-head or hex-head screwdriver or nut driver. It fits hose and tubing with an outside diameter falling within the 3.071-inch to 4-inch range covered by the SAE 56 specification.

Key Features

• SAE Size 56 clamp covering 3.071 inches to 4 inches diameter range
• Band material: 201-grade stainless steel and carbon steel construction
• Band width of 0.5 inches for stable, even clamping pressure
• Worm drive design allows fine adjustment with common hand tools
• UNSPSC Code 31171712 for procurement and cataloging reference

Compatibility

Designed as a standard SAE 56 worm gear clamp for use with hoses and tubing measuring 3.071 inches to 4 inches outside diameter across HVAC, plumbing, and general mechanical applications.

Installation Notes

Installation is performed by HVAC technicians, plumbers, or mechanical technicians using a flat-head screwdriver or 5/16-inch hex nut driver. Shut off fluid flow or system pressure before removing or replacing any hose clamp. Do not overtighten the worm screw, as excess torque can cut into soft hose material or distort the band. Follow applicable IPC or IFGC guidelines when used in potable water or gas-adjacent applications.
