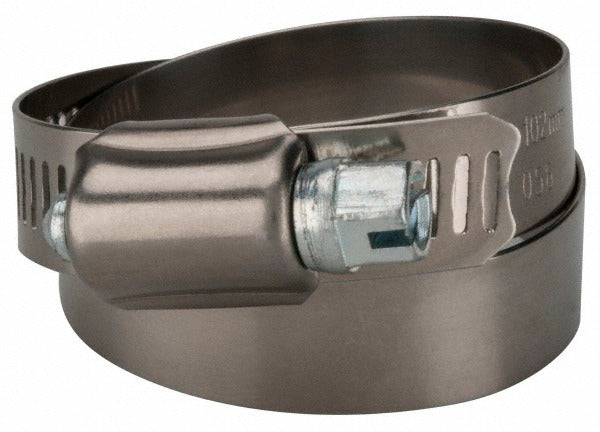

Value Collection MS01B78102 Worm Gear Clamp Sae 56

Product Description

The VALUE COLLECTION MS01B78102 is a worm drive hose clamp rated SAE size 56, designed to secure hoses, tubing, and flexible duct connections in plumbing, HVAC, and general mechanical applications. The band is constructed from grade 201 stainless steel and carbon steel, offering solid corrosion resistance in wet or humid service environments. The clamp accommodates a clamping range from 3.071 inches to 4.000 inches in diameter. The band measures 0.5 inches wide, providing stable holding force across the clamping surface. This clamp is installed by licensed plumbers, HVAC technicians, and mechanical contractors as a standard hose retention fastener.

This worm gear clamp is suited for residential and light commercial installations where a reliable, adjustable hose clamp is required. Typical applications include securing radiator hoses, coolant lines, intake ducting, drain connections, and flexible HVAC collars. The SAE 56 size designation allows the installer to quickly match it to standard pipe and hose sizing charts without measuring each time. The stainless steel and carbon steel combination keeps weight low while maintaining the grip needed for pressurized or vibration-prone connections.

Key Features

• SAE size 56 with a clamping range of 3.071 to 4.000 inches diameter
• Grade 201 stainless steel and carbon steel band construction for corrosion resistance
• Band width of 0.5 inches for even load distribution across the hose bead
• Worm drive mechanism allows precise torque adjustment with a standard flat or hex driver
• Compact and lightweight at 0.03 pounds per clamp

Compatibility

Designed as a standard SAE 56 worm gear clamp for use with hoses, flexible tubing, and duct connections in the 3.071 to 4.000 inch diameter range across plumbing, HVAC, and mechanical systems.

Installation Notes

Installation requires only a flat-blade or hex-head screwdriver or nut driver. Power down or de-pressurize the system before removing any existing clamp or hose connection. Position the clamp so the worm screw housing clears any adjacent fittings or sharp edges. Do not over-tighten, as excessive torque can deform soft hose materials or crack rigid connections.
