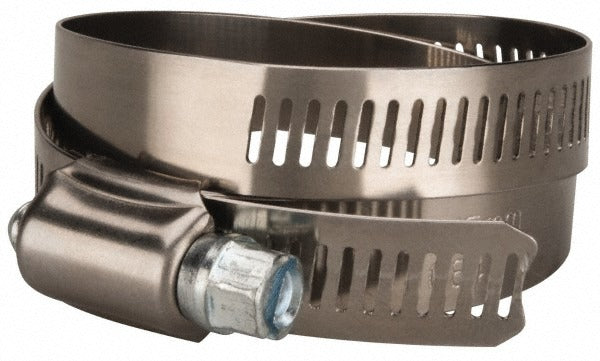

Value Collection MS01B64114 Worm Gear Clamp Sae 64

Product Description

The VALUE COLLECTION MS01B64114 is a worm drive gear clamp rated at SAE Size 64, designed to secure hose and tubing connections across a clamping range of 2.5 to 4.5 inches in diameter. The band is constructed from 201-grade stainless steel with a carbon steel worm screw, providing corrosion resistance suitable for plumbing, HVAC, and general mechanical installations. The band measures 0.5 inches wide. This clamp is installed by plumbers, HVAC technicians, and mechanical contractors wherever a reliable, adjustable hose-to-fitting seal is required.

This worm gear clamp is well-suited for residential and light commercial applications including coolant lines, radiator hoses, drain connections, duct collars, and other flexible tubing assemblies that fall within the 2.5 to 4.5 inch diameter range. The SAE 64 designation makes it straightforward to specify and cross-reference on service calls or parts orders.

Key Features

• SAE Size 64 with a clamping range of 2.5 to 4.5 inches in diameter
• 201-grade stainless steel band for corrosion resistance
• Worm drive design allows continuous, tool-adjustable clamping force
• Band width of 0.5 inches distributes load evenly across hose bead
• Compatible with flexible hose, tubing, and duct collar connections

Compatibility

Designed as a standard SAE 64 worm gear clamp for use with flexible hose and tubing in the 2.5 to 4.5 inch outside diameter range, typical of HVAC, plumbing, and general mechanical assemblies.

Installation Notes

Installation is performed by plumbers, HVAC technicians, or mechanical service professionals using a flat-head or hex screwdriver. Always depressurize and drain the system before removing or installing hose clamps on fluid-carrying lines. Position the clamp so the worm housing does not bear directly against sharp edges or fittings. Tighten incrementally to achieve a uniform seal without over-torquing the band.
