Value Collection MP43030 Threaded Insert M4x0.70 10pk

Product Description

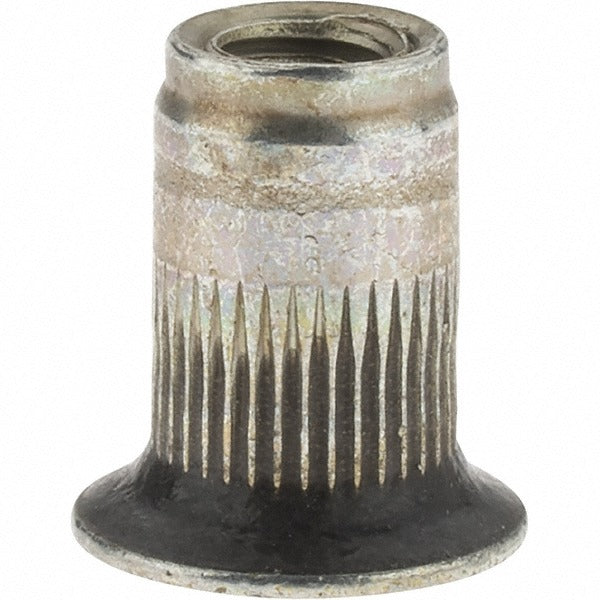

The VALUE COLLECTION MP43030 is a knurled body open end threaded insert designed to create strong, permanent internal threads in thin-walled materials, soft metals, or assemblies where through-threading is not practical. Sized for M4x0.70 thread and featuring a 6.73mm insert diameter and 10.67mm overall length, this insert is pressed or driven into a pre-drilled 6.75mm hole. The knurled exterior resists rotation and pullout once seated. Made from 1008/1010 steel with a clear protective zinc yellow dichromate finish, it is suited for fastener repair, panel assembly, and light-structural fabrication work. Sold in a pack of 10.

This insert is applied in sheet metal fabrication, light manufacturing, and general mechanical assembly where a reliable M4 threaded anchor point is needed in a workpiece that cannot accept a standard nut. The open end design allows fasteners to pass through completely, making it useful for through-bolt applications in enclosures, brackets, and frames. Installation is typically performed by machinists, fabricators, or mechanical assemblers using a standard drill press or hand tool setup.

Key Features

• M4x0.70 internal thread for standard metric fastener compatibility
• Knurled body exterior resists rotation and pullout after installation
• Open end design allows full fastener pass-through
• 1008/1010 steel construction for reliable strength in light-structural use
• Zinc yellow dichromate finish provides corrosion protection
• Minimum grip of 0.5mm accommodates thin-wall applications

Compatibility

Designed as a standard-style M4x0.70 knurled open end threaded insert for use in applications requiring a 6.75mm installation hole diameter.

Installation Notes

Installation is performed by pressing or driving the insert into a clean, properly sized 6.75mm pre-drilled hole using an appropriate insertion tool or arbor press. Ensure the workpiece is secured and the hole is deburred before seating the insert. Do not exceed the material grip range, as improper seating can damage the host material or reduce thread integrity. Verify thread engagement with a gauge or test fastener after installation.
