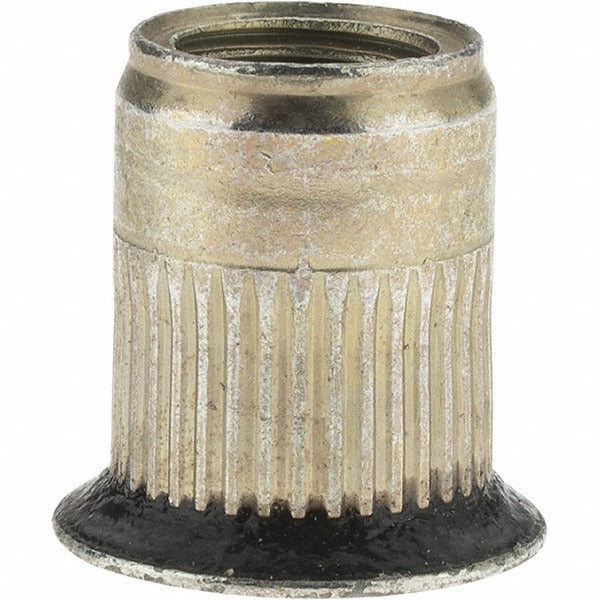

Value Collection MP43029 Threaded Insert 3/8-24 Steel

Product Description

The VALUE COLLECTION MP43029 is a sealed head open end threaded insert designed for creating strong, permanent internal threads in thin-wall or sheet metal assemblies. The insert measures 0.53 inches in insert diameter and 0.69 inches in overall length, with a head diameter of 0.685 inches and a required hole diameter of 0.5312 inches. It accepts a 3/8-24 thread and is manufactured from 1008/1010 steel with a clear protective zinc yellow dichromate finish that resists corrosion in standard service environments. This type of insert is typically installed by machinists, millwrights, or maintenance technicians working on fabricated steel components.

This insert is suited for light industrial, mechanical, and general fabrication applications where a reliable threaded connection is needed in material that cannot support cut threads alone. The sealed head design prevents fluid or debris intrusion through the back of the insert, making it appropriate for assemblies where contamination is a concern. It handles a minimum grip of 0.027 inches and a maximum grip of 0.115 inches, accommodating a range of sheet or panel thicknesses within that span. Sold in a package quantity of 10 with a minimum order quantity of 1 package.

Key Features

• 3/8-24 internal thread for standard unified fine-thread fastener compatibility
• Sealed head design blocks fluid and debris ingress through the rear of the insert
• Open end allows bolt pass-through or threaded engagement from either side
• 1008/1010 steel construction with zinc yellow dichromate finish for corrosion resistance
• Grip range of 0.027 inches to 0.115 inches suits thin sheet metal and panel applications
• Package quantity of 10 per unit for efficient stocking and use

Compatibility

Designed as a standard sealed head open end threaded insert for use in steel fabrication and mechanical assemblies requiring a 3/8-24 internal thread in thin-wall or sheet stock within the stated grip range.

Installation Notes

Installation typically requires a dedicated insert installation tool or press sized for the 0.5312-inch hole diameter. Ensure the mounting hole is clean, deburred, and within tolerance before seating the insert. Power down or de-energize any associated equipment before performing installation work on live assemblies. Follow applicable worksite safety and fabrication standards for fastener installation.
