Value Collection MP38240 Hammerlock Cotter Pin

Product Description

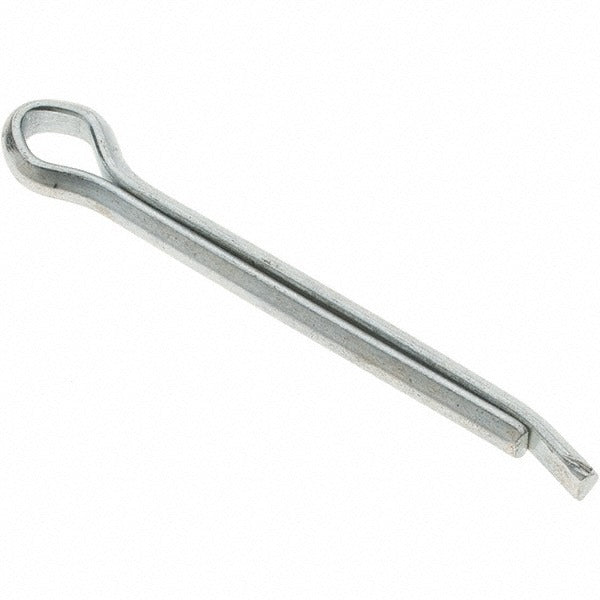

The VALUE COLLECTION MP38240 is a hammerlock cotter pin used to secure clevis pins, clevises, and linkage assemblies across a wide range of mechanical and industrial applications. Measuring 5/32 inches in diameter and 1-3/4 inches in length, this cotter pin is manufactured from Grade 2 steel with a zinc-plated finish that provides basic corrosion resistance in normal service environments. The hammerlock design locks into position when the legs are bent, providing a reliable, low-cost mechanical retention solution. Installation requires no specialized tools and is performed by hand or with standard pliers.

This cotter pin is suited for use in agricultural equipment, material handling systems, trailers, gates, and general mechanical assemblies where a positive, tamper-evident pin retention method is needed. The zinc-plated finish makes it appropriate for light outdoor or indoor applications where minimal moisture exposure is expected. This type of fastener is commonly installed by maintenance technicians, field service personnel, and equipment assemblers working on linkage, hitch, and pivot-point connections.

Key Features

• Hammerlock cotter pin design locks securely when legs are bent after installation
• 5/32 inch diameter fits standard clevis pins and linkage bores of matching size
• 1-3/4 inch length accommodates typical clevis and pivot assembly thicknesses
• Grade 2 steel construction provides adequate strength for standard mechanical retention duty
• Zinc-plated finish offers basic protection against oxidation in normal service conditions

Compatibility

Designed as a standard replacement or stock cotter pin for mechanical assemblies requiring a 5/32 inch diameter hammerlock-style retaining pin. Consult the equipment manufacturer's fastener specifications to confirm dimensional fit before installation.

Installation Notes

Always depressurize or de-energize the assembly before servicing any pin connection. Insert the cotter pin fully through the bore, then bend the legs outward with pliers to lock in place. Cotter pins are considered single-use fasteners and should be replaced, not reused, once removed. Follow applicable equipment manufacturer guidelines for proper pin retention requirements.
