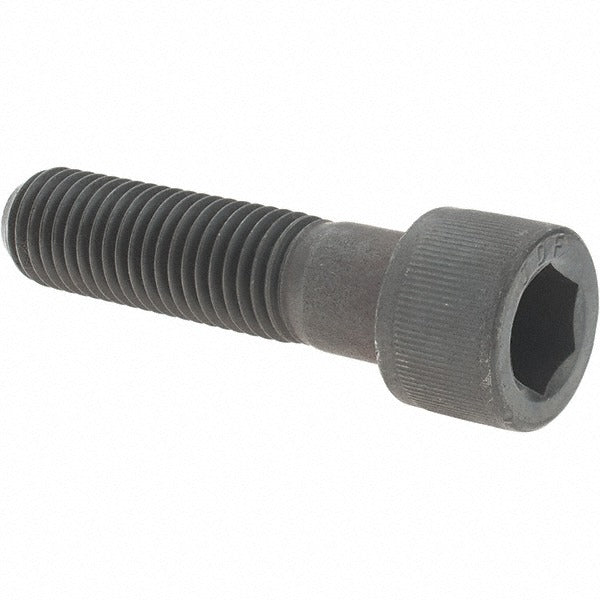

Value Collection MP33697-1 Hex Socket Cap Screw 3/4-10

Product Description

The VALUE COLLECTION MP33697-1 is a hex socket cap screw designed for high-strength bolted assemblies where a low-profile head and internal drive are required. It features a 3/4-10 UNC thread with a 3-inch length under head and is partially threaded along the shank. The 5/8-inch hex drive accepts a standard hex key or Allen wrench. Manufactured from alloy steel with a black oxide finish, this fastener meets ASME/ANSI B18.3 and ASTM A574 standards, making it suitable for demanding mechanical and structural applications where tensile strength and corrosion resistance matter.

This cap screw is used in general industrial, mechanical, and maintenance applications requiring a flush or recessed fastener head. Typical installations include machine frames, fixtures, tooling plates, and equipment assemblies. The partial threading engages a tapped hole or nut along the threaded portion while leaving a smooth shank section, which is useful for applications requiring precise location or shear loading. It is installed by maintenance technicians, machinists, and industrial mechanics across a wide range of shop and field environments.

Key Features

• 3/4-10 UNC thread for broad compatibility with standard tapped holes and nuts
• 3-inch length under head with partial threading for shank clearance and shear load applications
• 5/8-inch hex socket drive for use with standard Allen keys or hex bit drivers
• Alloy steel construction meets ASTM A574 high-strength fastener requirements
• Black oxide finish provides mild corrosion resistance and reduces light reflection
• Conforms to ASME/ANSI B18.3 dimensional standards

Compatibility

Designed as a standard 3/4-10 UNC hex socket cap screw suitable for use in any application requiring an ASME/ANSI B18.3-compliant internal-drive cap screw with a 3-inch length under head.

Installation Notes

Installation should be performed by a qualified mechanic or technician using a properly sized 5/8-inch hex key or Allen bit driver. Ensure the mating tapped hole is clean and free of debris before installation, and verify thread engagement depth meets the requirements of the application. Always de-energize or lock out equipment before servicing fastened assemblies in accordance with applicable safety procedures.
