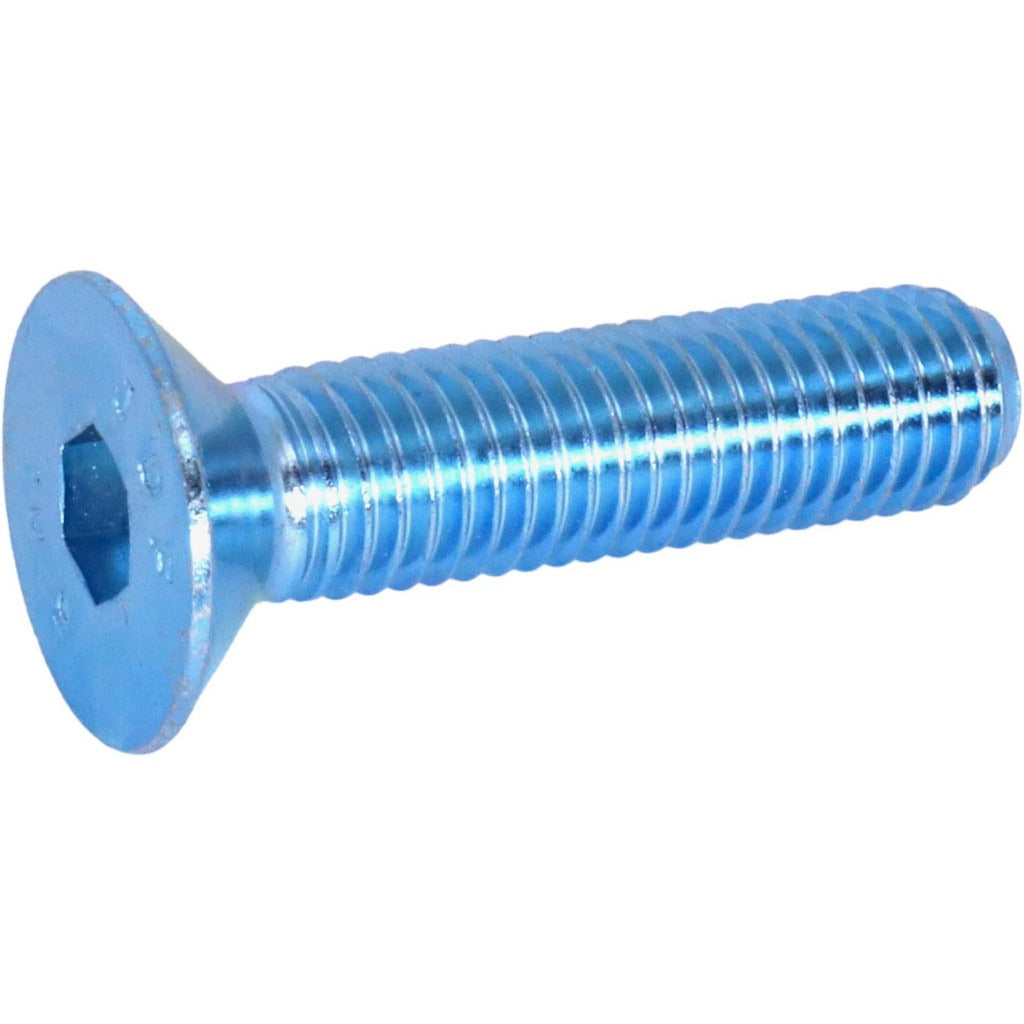

Value Collection MKFC06C045MBPKG M6x1 Flat Socket Cap Screw 25pk

Product Description

The VALUE COLLECTION MKFC06C045MBPKG is a flat socket cap screw in the metric M6x1 thread size, manufactured from grade 10.9 alloy steel with a zinc-blue trivalent chromate finish. At 45 mm overall length and fully threaded, this fastener uses a 4 mm hex socket drive and seats flush with the mating surface thanks to its countersunk flat head. The grade 10.9 designation indicates a high-strength fastener with tensile properties suitable for demanding mechanical assemblies. The trivalent chromate coating provides corrosion resistance while remaining RoHS and REACH compliant. Each package contains 25 pieces.

This screw is used wherever a flush or low-profile fastener is required in metric-threaded applications. Common installation scenarios include machine frames, brackets, enclosures, jigs, and mechanical assemblies where the fastener head must sit below or level with the workpiece surface. The right-hand thread and standard metric pitch make it straightforward to source matching hardware. Machinists, millwrights, maintenance technicians, and mechanical contractors routinely specify this type of fastener for production and repair work across industrial and commercial equipment.

Key Features

• Grade 10.9 alloy steel construction for high-strength fastening in demanding assemblies
• Fully threaded 45 mm shank provides maximum thread engagement across the full length
• Countersunk flat head seats flush with or below the mating surface to eliminate protrusion
• 4 mm hex socket drive for use with standard metric Allen keys and hex bit drivers
• Zinc-blue trivalent chromate finish resists corrosion and meets RoHS and REACH compliance requirements
• Packaged in quantities of 25 for bench stock, kitting, and production use

Compatibility

Designed as a standard metric flat socket cap screw conforming to DIN 7991 and ISO 10642, suitable for use in any M6x1 threaded application requiring a countersunk hex socket fastener.

Installation Notes

Installation is typically performed by machinists, millwrights, or maintenance technicians using a calibrated torque wrench and a 4 mm hex key or bit. Ensure mating holes are countersunk to the correct angle to achieve full head seating. De-energize, de-pressurize, or otherwise make safe any equipment before disassembling fastened joints. Follow applicable equipment manufacturer torque specifications and relevant industry standards for the assembly being serviced.
